HT7020 - three-port low voltage detector

Product Overview

📥 Download Datasheet

HT7020 three-port low voltage detector by UMW - Datasheet Preview — Datasheet preview – HT7020

Datasheet Details

Part number	HT7020
Manufacturer	UMW
File Size	195.92 KB
Description	three-port low voltage detector
Datasheet	HT7020 Datasheet
Additional preview pages of the HT7020 datasheet.

Product details

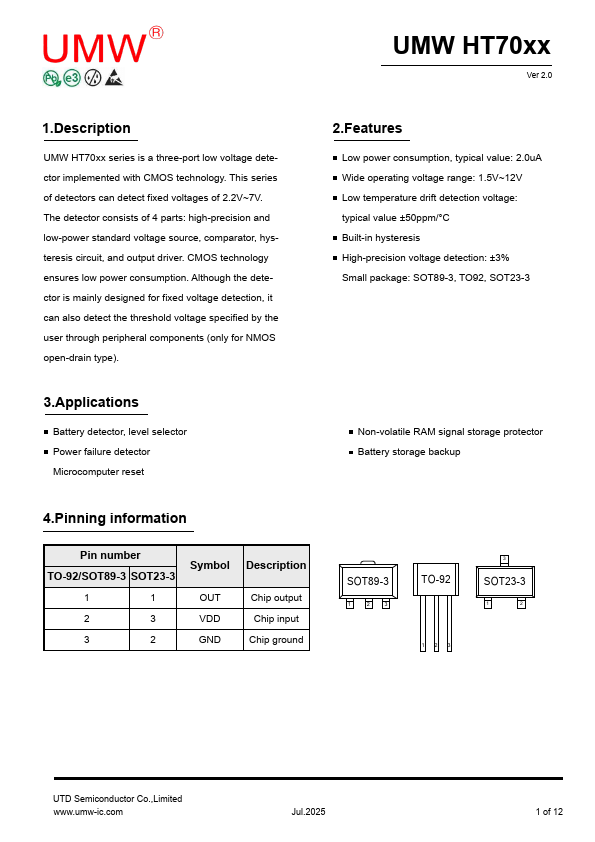

Description

UMW HT70xx series is a three-port low voltage detector implemented with CMOS technology.

Features

Low power consumption, typical value: 2.0uA Wide operating voltage range: 1.5V~12V Low temperature drift detection voltage: typical value ±50ppm/°C Built-in hysteresis High-precision voltage detection: ±3% Small package: SOT89-3, TO92, SOT23-3 Non-volatile RAM signal storage protector Battery storage backup 4.Pinning information Pin number TO-92/SOT89-3 SOT23-3 1 1 2 3 3 2 Symbol OUT VDD GND.
