HT7022, HT7020 three-port low voltage detector

UMW HT70xx Ver 2.0 1..

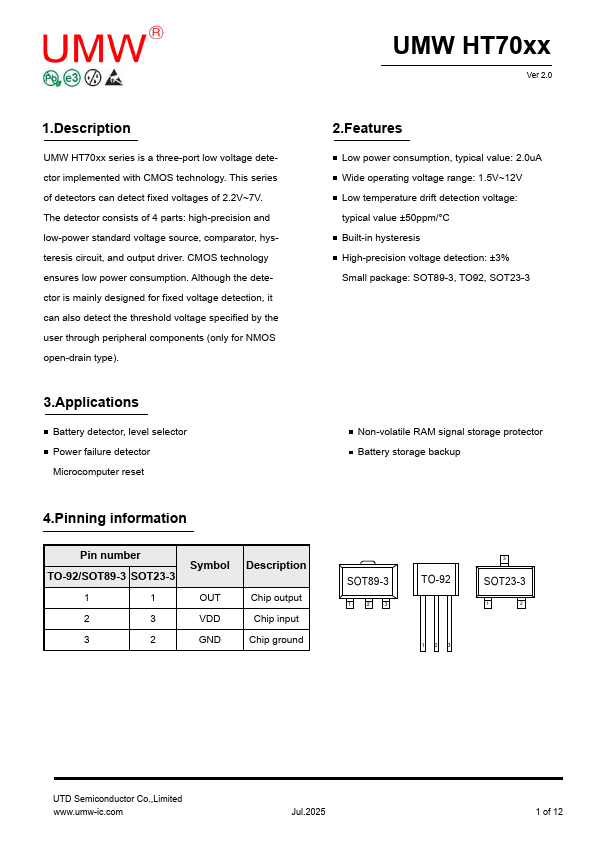

UMW HT70xx series is a three-port low voltage detector implemented with CMOS technology.

HT7020-UMW.pdf

HT7022 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7022, HT7020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT7022, HT7020

Manufacturer:

UMW

File Size:

195.92 KB

Description:

three-port low voltage detector

Note:

This datasheet PDF includes multiple part numbers: HT7022, HT7020.
Please refer to the document for exact specifications by model.

Features

* Low power consumption, typical value: 2.0uA Wide operating voltage range: 1.5V~12V Low temperature drift detection voltage: typical value ±50ppm/°C Built-in hysteresis High-precision voltage detection: ±3% Small package: SOT89-3, TO92, SOT23-3 Non-volatile RAM signal storage protector Battery storag
