HT7033 - three-port low voltage detector

Product Overview

Part number	HT7033
Manufacturer	UMW
File Size	195.92 KB
Description	three-port low voltage detector
Datasheet	HT7033 Datasheet
Note	This datasheet PDF includes multiple part numbers: HT7033, HT7020. Please refer to the document for exact specifications by model.
Additional preview pages of the HT7033 datasheet.

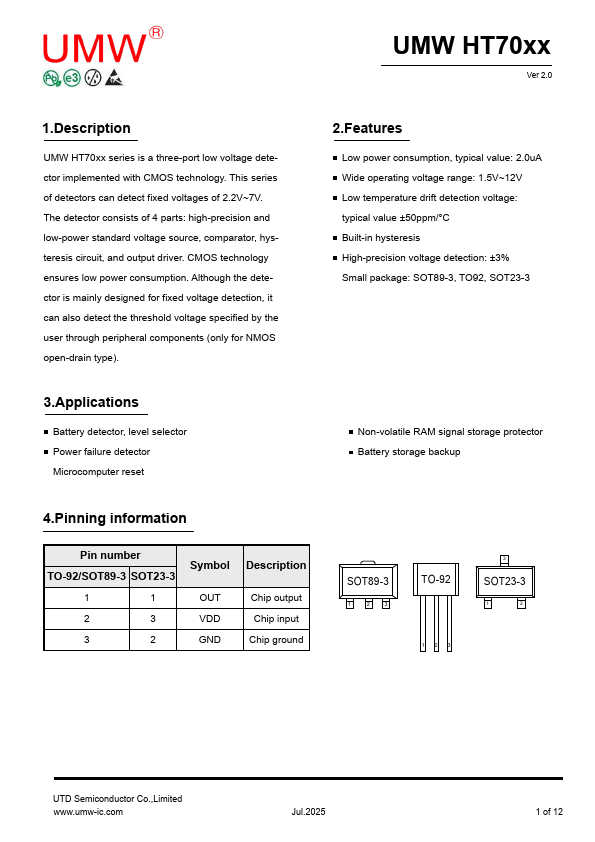

UMW HT70xx series is a three-port low voltage detector implemented with CMOS technology.

Low power consumption, typical value: 2.0uA Wide operating voltage range: 1.5V~12V Low temperature drift detection voltage: typical value ±50ppm/°C Built-in hysteresis High-precision voltage detection: ±3% Small package: SOT89-3, TO92, SOT23-3 Non-volatile RAM signal storage protector Battery storage backup 4.Pinning information Pin number TO-92/SOT89-3 SOT23-3 1 1 2 3 3 2 Symbol OUT VDD GND.
