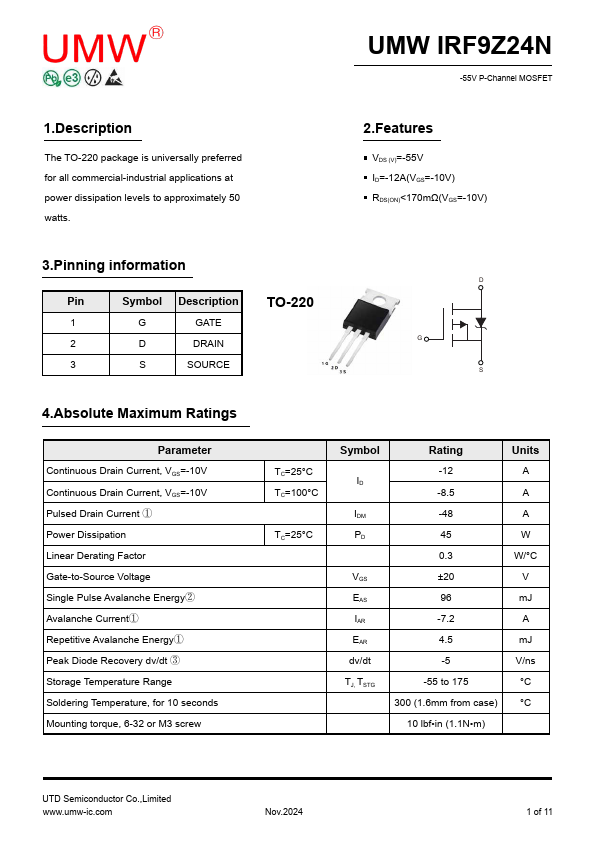

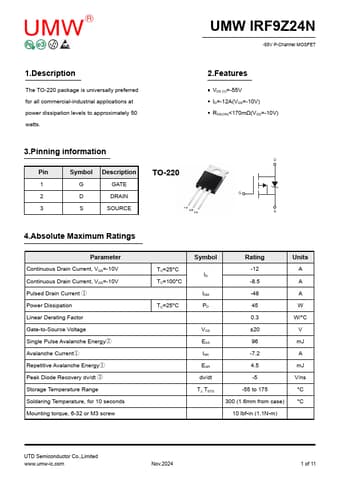

IRF9Z24N
Description
The TO-220 package is universally preferred for all mercial-industrial applications at power dissipation levels to approximately 50 watts.
2.Features
VDS (V)=-55V ID=-12A(VGS=-10V) RDS(ON)<170mΩ(VGS=-10V)
3.Pinning information
Pin
Symbol Description
GATE
DRAIN
SOURCE
TO-220
4.Absolute Maximum Ratings
Parameter Continuous Drain Current, VGS=-10V Continuous Drain Current, VGS=-10V Pulsed Drain Current æ Power Dissipation Linear Derating Factor Gate-to-Source Voltage Single Pulse Avalanche Energyç Avalanche Currentæ Repetitive Avalanche Energyæ Peak Diode Recovery dv/dt è Storage Temperature Range Soldering Temperature, for 10 seconds Mounting torque, 6-32 or M3 screw
TC=25°C TC=100°C
TC=25°C
Symbol
Rating
Units
-12
-8.5
-48
W/°C
±20
96 m...
