IRFL024ZTR - 55V N-ChanneI MOSFET

IRFL024ZTR Description

UMW IRFL024ZTR 55V N-ChanneI MOSFET 1..
This Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

IRFL024ZTR Features

* of this design are a 150°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. 2.2Features Advanced Process Technology Ultra Low On-Resistance 2.1Features VDS (V)=55V ID=5.1A(VGS=10V) RDS(ON)≤57.5mΩ(VGS=10V) 150°C Operating Temperature Fast Switching 3.Pi

📥 Download Datasheet

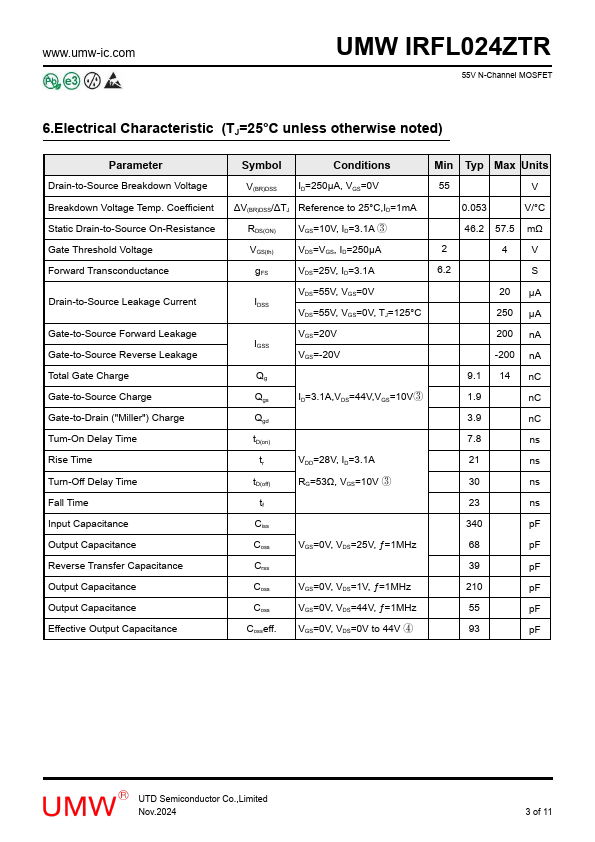

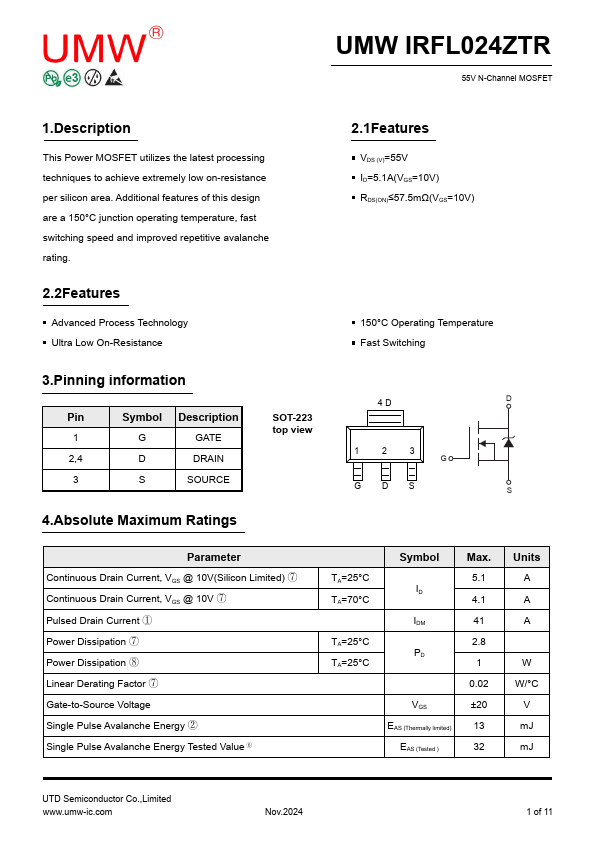

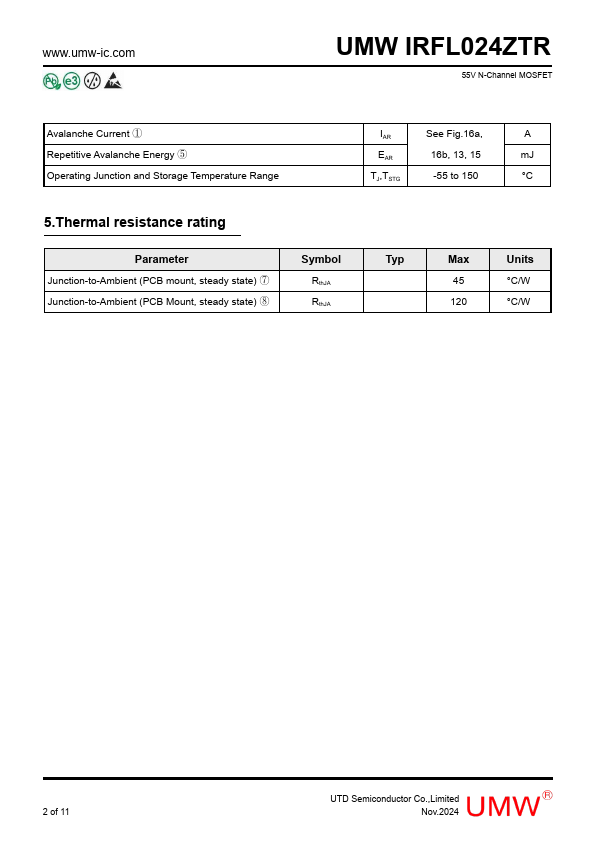

Preview of IRFL024ZTR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFL024ZTR
Manufacturer
UMW
File Size
291.05 KB
Datasheet
IRFL024ZTR-UMW.pdf
Description
55V N-ChanneI MOSFET
