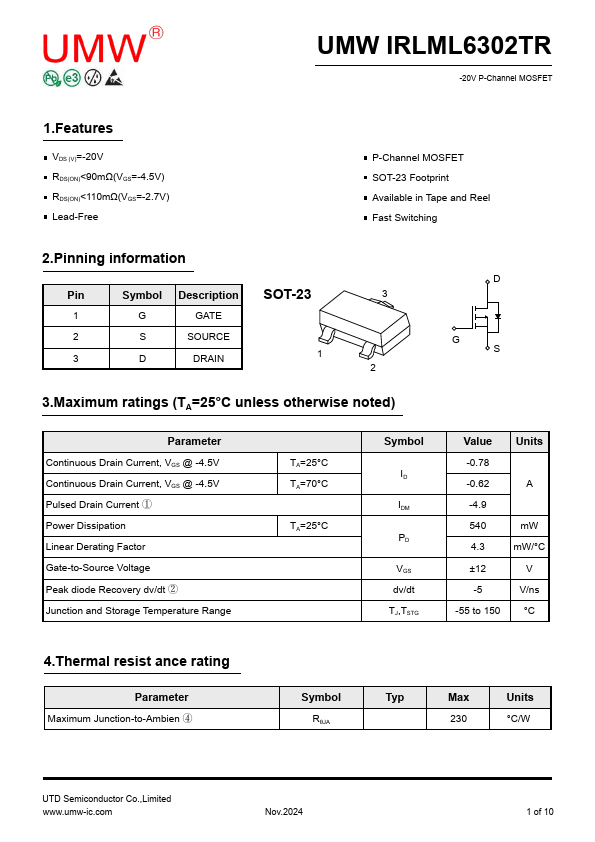

IRLML6302TR
Features
VDS (V)=-20V RDS(ON)<90mΩ(VGS=-4.5V) RDS(ON)<110mΩ(VGS=-2.7V) Lead-Free
P-Channel MOSFET SOT-23 Footprint Available in Tape and Reel Fast Switching
2.Pinning information
Pin
Symbol Description
SOT-23
GATE
SOURCE
DRAIN
1 2
3.Maximum ratings (TA=25°C unless otherwise noted)
Parameter Continuous Drain Current, VGS @ -4.5V Continuous Drain Current, VGS @ -4.5V Pulsed Drain Current æ Power Dissipation Linear Derating Factor Gate-to-Source Voltage Peak diode Recovery dv/dt ç Junction and Storage Temperature Range
TA=25°C TA=70°C
TA=25°C
Symbol ID IDM
PD VGS dv/dt TJ,TSTG
Value Units
-0.78
-0.62
-4.9
540 m W
4.3 m W/°C
±12
-5
V/ns
-55 to 150 °C
4.Thermal resist ance rating
Parameter Maximum Junction-to-Ambien é
Symbol
Typ
Max
Units
RθJA...
