L7809, L7805 - Three-terminal positive voltage regulator

L7809 Description

UMW L78xx 1..

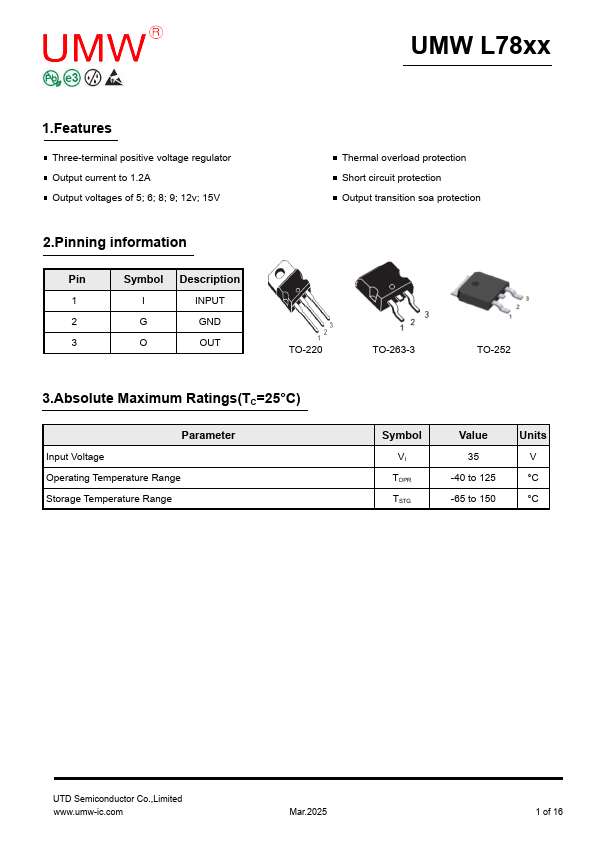

1 I INPUT 2 G GND 3 O OUT Thermal overload protection Short circuit protection Output transition soa protection TO-220 TO-263-3 TO-252 3.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: L7809, L7805. Please refer to the document for exact specifications by model.

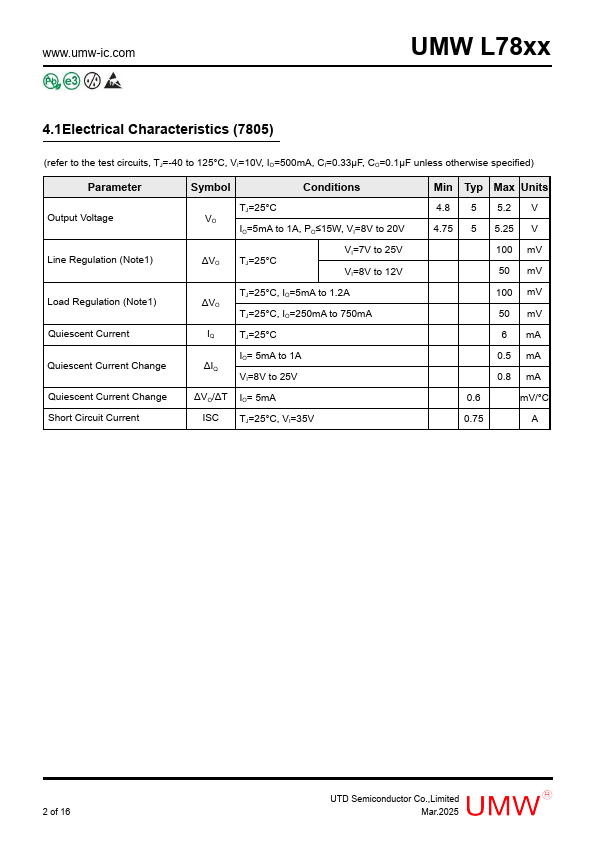

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L7809, L7805
Manufacturer
UMW
File Size
1.85 MB
Datasheet
L7805-UMW.pdf
Description
Three-terminal positive voltage regulator
Note
This datasheet PDF includes multiple part numbers: L7809, L7805.
Please refer to the document for exact specifications by model.
