LM2594HV, LM2594 DC/DC converter

Description

UMW R UMW LM2594(HV) .
The LM2594(HV) is a 150 KHz fixed frequency PWM buck (step-down)DC/DC converter, capable of driving a 1.

📥 Download Datasheet

LM2594HV Datasheet Preview — This datasheet PDF includes multiple part numbers: LM2594HV, LM2594. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LM2594HV, LM2594
Manufacturer: UMW
File Size: 763.27 KB
Datasheet: LM2594-UMW.pdf
Description: DC/DC converter
Note: This datasheet PDF includes multiple part numbers: LM2594HV, LM2594.
Please refer to the document for exact specifications by model.

Features

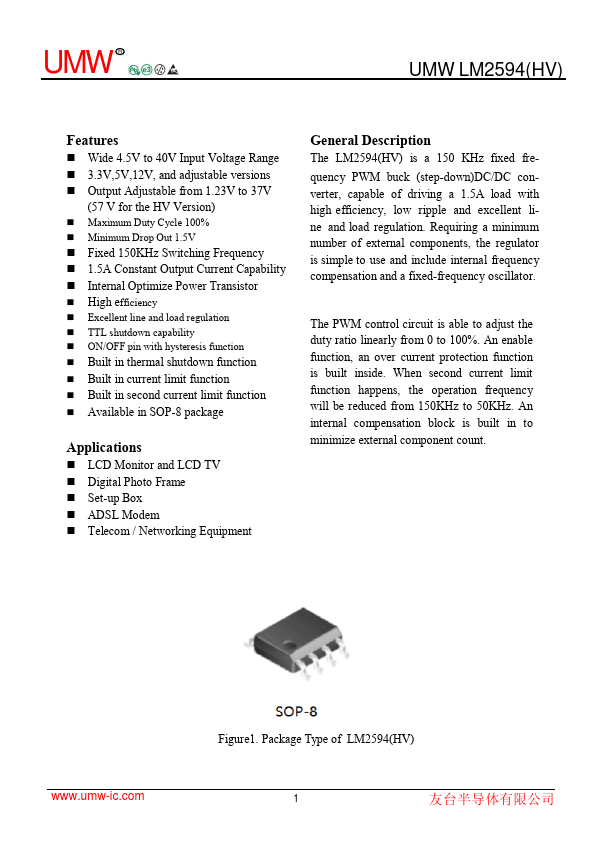

* n Wide 4.5V to 40V Input Voltage Range n 3.3V,5V,12V, and adjustable versions n Output Adjustable from 1.23V to 37V (57 V for the HV Version) n Maximum Duty Cycle 100% n Minimum Drop Out 1.5V n Fixed 150KHz Switching Frequency n 1.5A Constant Output Current Capability n Internal Optimize Power Trans
