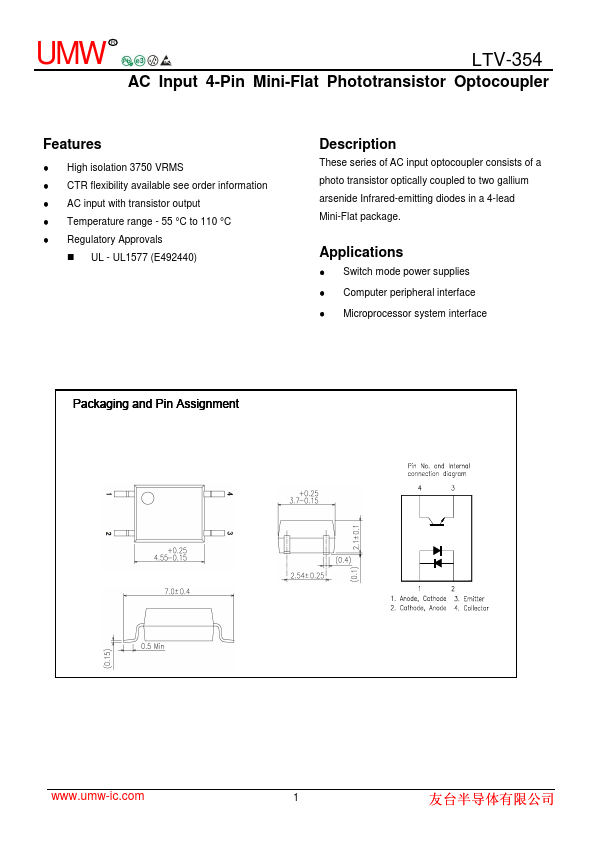

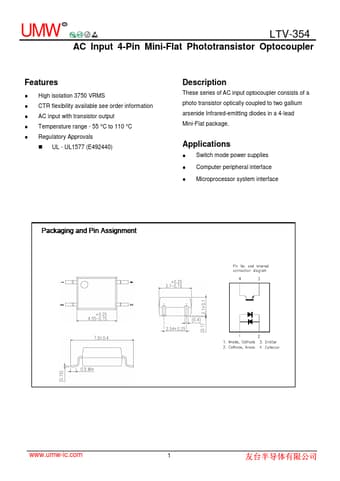

LTV-354
Features
- High isolation 3750 VRMS
- CTR flexibility available see order information
- AC input with transistor output
- Temperature range
- 55 °C to 110 °C
- Regulatory Approvals
- UL
- UL1577 (E492440)
Description
These series of AC input optocoupler consists of a photo transistor optically coupled to two gallium arsenide Infrared-emitting diodes in a 4-lead Mini-Flat package.
Applications
- Switch mode power supplies
- puter peripheral interface
- Microprocessor system interface
Packaging and Pin Assignment
.umw-ic.
友台半导体有限公司
UMW R
AC Input 4-Pin Mini-Flat Phototransistor Optocoupler

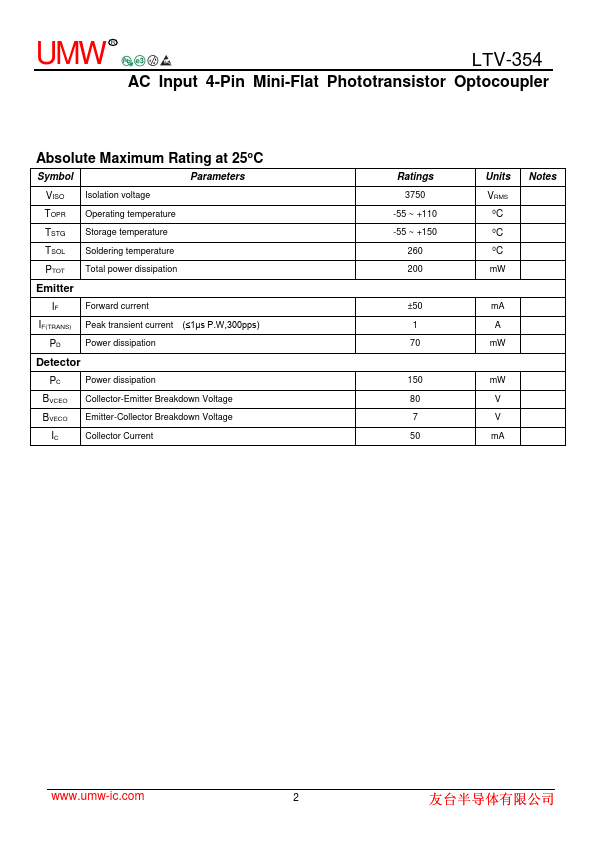

Absolute Maximum Rating at 25o C
Symbol
Parameters
VISO Isolation voltage
TOPR Operating temperature
TSTG Storage temperature
TSOL Soldering temperature
PTOT Total power dissipation
Emitter
Forward current
IF(TRANS) Peak transient current (≤1μs P.W,300pps)
Power dissipation
Detector
Power dissipation
BVCEO Collector-Emitter Breakdown Voltage
BVECO...
