NUP3105LT1G - TVS Arrays

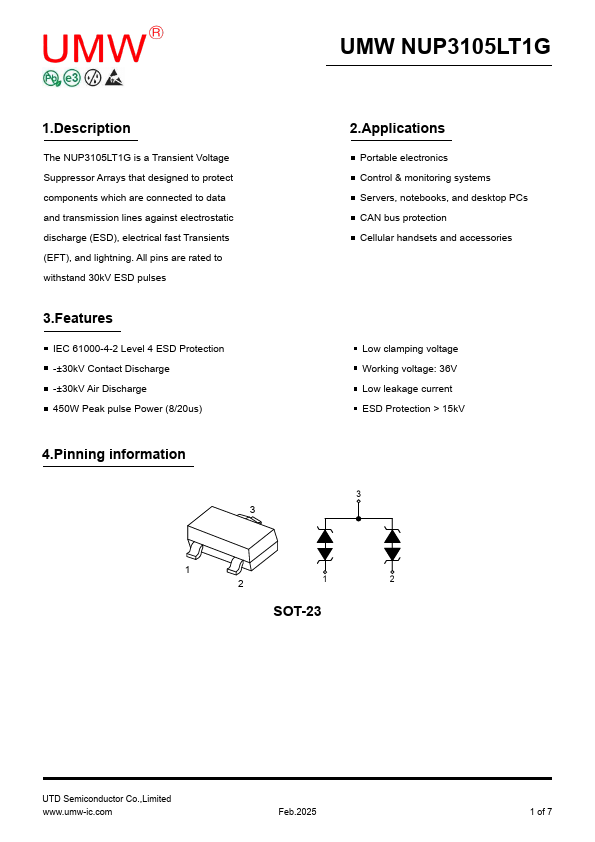

NUP3105LT1G Datasheet Preview — Preview of NUP3105LT1G PDF

Datasheet Details

Part number	NUP3105LT1G
Manufacturer	UMW
File Size	690.52 KB
Description	TVS Arrays
Datasheet	NUP3105LT1G-UMW.pdf

NUP3105LT1G Product details

Description

The NUP3105LT1G is a Transient Voltage Suppressor Arrays that designed to protect components which are connected to data and transmission lines against electrostatic discharge (ESD), electrical fast Transients (EFT), and lightning.

Features

IEC 61000-4-2 Level 4 ESD Protection -±30kV Contact Discharge -±30kV Air Discharge 450W Peak pulse Power (8/20us) 4.Pinning information 3 2.
