PESD2IVN24 - Transient Voltage Suppressor Arrays

PESD2IVN24 Datasheet Preview — Preview of PESD2IVN24 PDF

Datasheet Details

Part number	PESD2IVN24
Manufacturer	UMW
File Size	682.69 KB
Description	Transient Voltage Suppressor Arrays
Datasheet	PESD2IVN24-UMW.pdf

PESD2IVN24 Product details

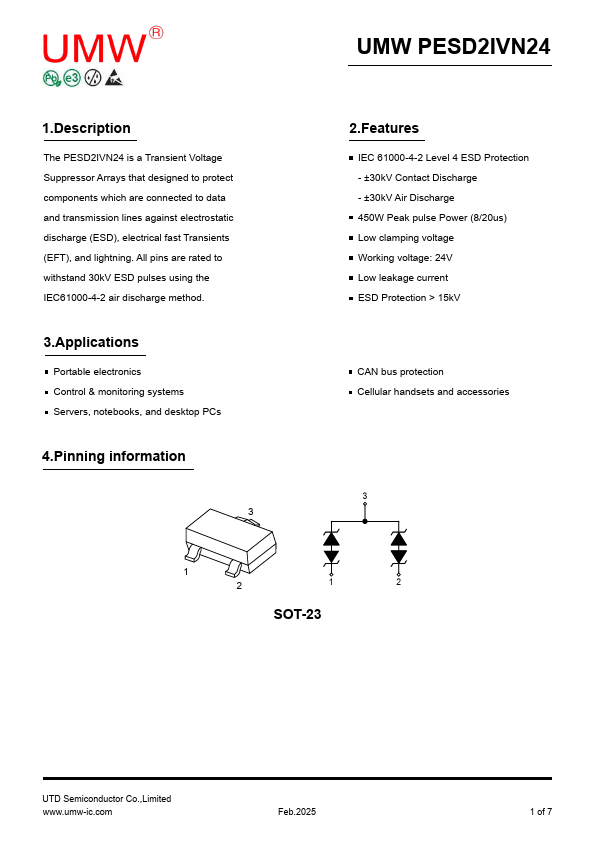

Description

The PESD2IVN24 is a Transient Voltage Suppressor Arrays that designed to protect components which are connected to data and transmission lines against electrostatic discharge (ESD), electrical fast Transients (EFT), and lightning.

Features

IEC 61000-4-2 Level 4 ESD Protection - ±30kV Contact Discharge - ±30kV Air Discharge 450W Peak pulse Power (8/20us) Low clamping voltage Working voltage: 24V Low leakage current ESD Protection > 15kV CAN bus protection Cellular handsets and accessories 3 1 2 1 2 SOT-23 UTD Semiconductor Co. ,Limited www. umw-ic. com Feb.2025 1 of 7 www. umw-ic. com 5.Absolute Maximum Ratings Parameter Peak pulse power (tp=8/20us)@25°C Peak pulse current (tp=8/20us)@25°C ESD (IEC61000-4-2 air discharge) @25°C.
