SN74LVC1G34 - Single buffer

Product Overview

Part number	SN74LVC1G34
Manufacturer	UMW
File Size	185.24 KB
Description	Single buffer
Datasheet	SN74LVC1G34 Datasheet
Additional preview pages of the SN74LVC1G34 datasheet.

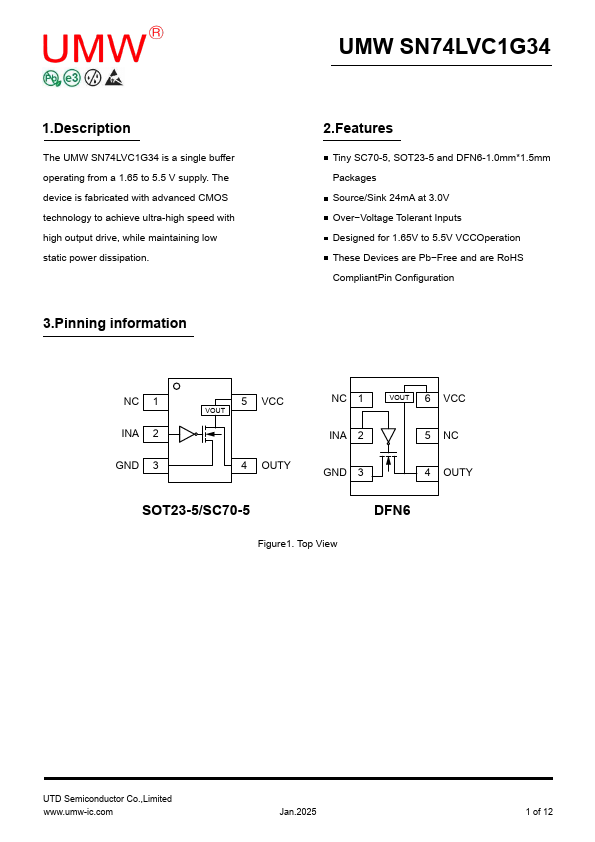

The UMW SN74LVC1G34 is a single buffer operating from a 1.65 to 5.5 V supply.

Tiny SC70-5, SOT23-5 and DFN6-1.0mm.
1.5mm Packages Source/Sink 24mA at 3.0V Over.
Voltage Tolerant Inputs Designed for 1.65V to 5.5V VCCOperation These Devices are Pb.

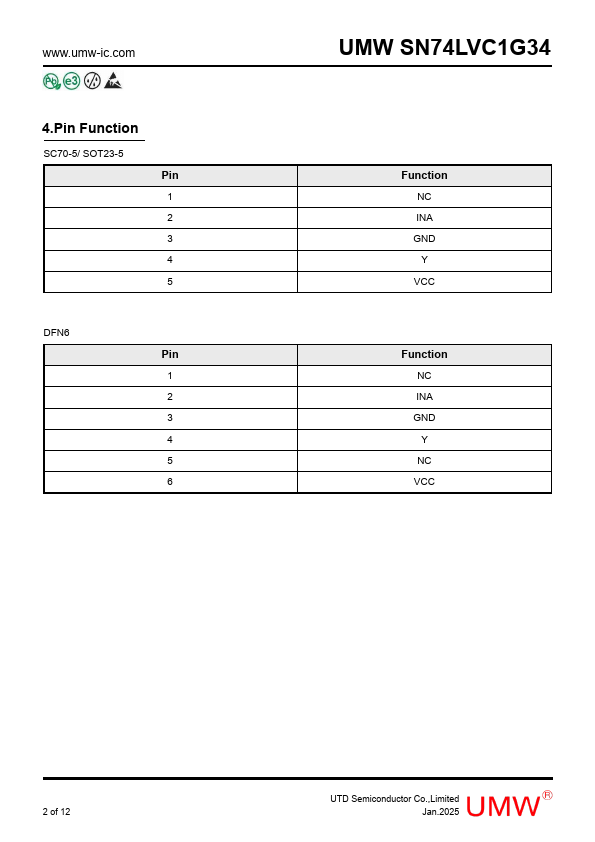

Free and are RoHS CompliantPin Configuration NC 1 INA 2 GND 3 5 VCC VOUT 4 OUTY NC 1 VOUT 6 VCC INA 2 5 NC GND 3 4 OUTY SOT23-5/SC70-5 Figure1. Top View DFN6 UTD Semiconductor Co. ,Limited www. umw-ic. com Jan.2025 1 of 12 www. umw-ic. com 4.Pin Function SC70-5/ SOT23-5 Pin 1 2 3 4 5 DFN6 Pin 1 2 3 4 5 6.
