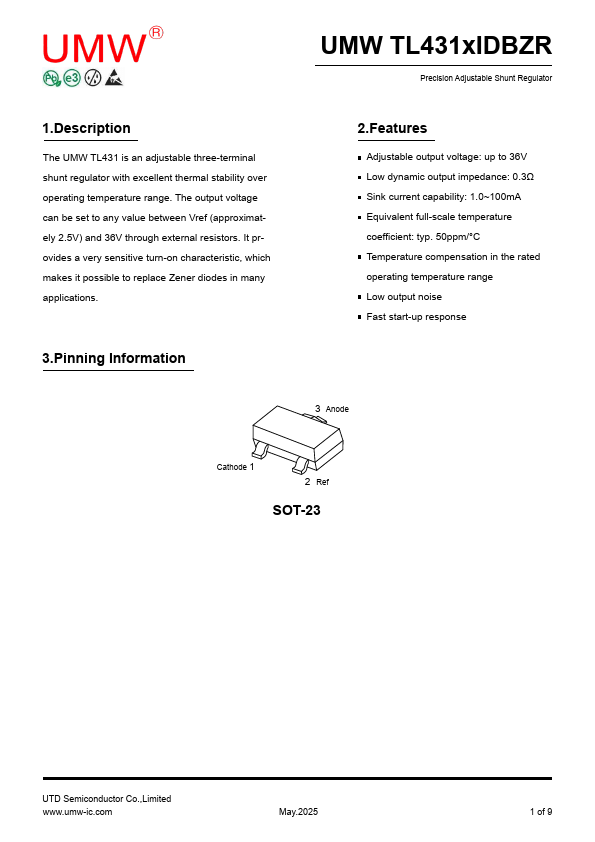

TL431BIDBZR, TL431AIDBZR Precision Adjustable Shunt Regulator

Description

1..
The UMW TL431 is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range.

📥 Download Datasheet

TL431BIDBZR Datasheet Preview — This datasheet PDF includes multiple part numbers: TL431BIDBZR, TL431AIDBZR. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TL431BIDBZR, TL431AIDBZR
Manufacturer: UMW
File Size: 760.20 KB
Datasheet: TL431AIDBZR-UMW.pdf
Description: Precision Adjustable Shunt Regulator
Note: This datasheet PDF includes multiple part numbers: TL431BIDBZR, TL431AIDBZR.
Please refer to the document for exact specifications by model.

Features

* Adjustable output voltage: up to 36V Low dynamic output impedance: 0.3Ω Sink current capability: 1.0~100mA Equivalent full-scale temperature coefficient: typ. 50ppm/°C Temperature compensation in the rated operating temperature range Low output noise Fast start-up response 3 Anode Cathode 1 2 Ref
