UBT26A05L03 Low Capacitance 2-Line ESD Protection

Description

UMW UBT26A05L03 Low Capacitance 2-Line ESD Protection 1..
UBT26A05L03 is designed to protect high speed data interfaces.

📥 Download Datasheet

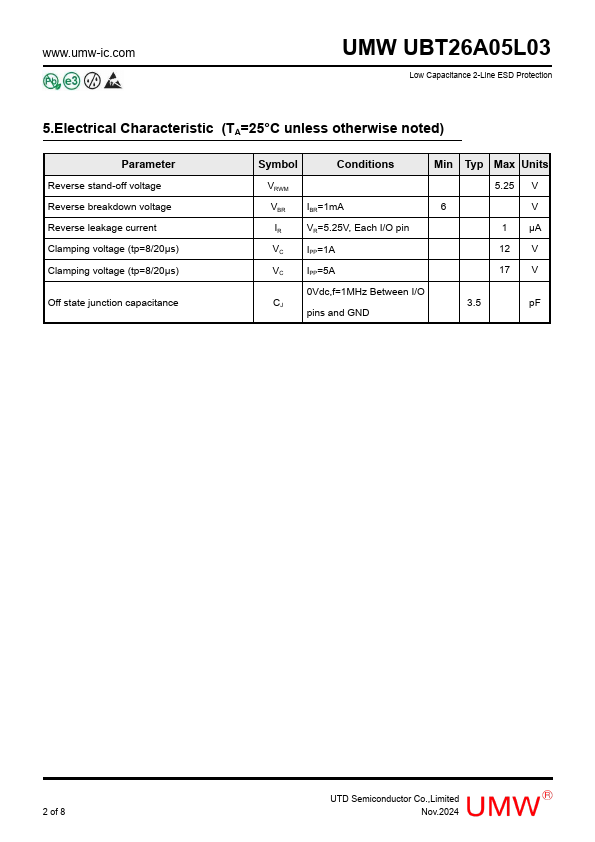

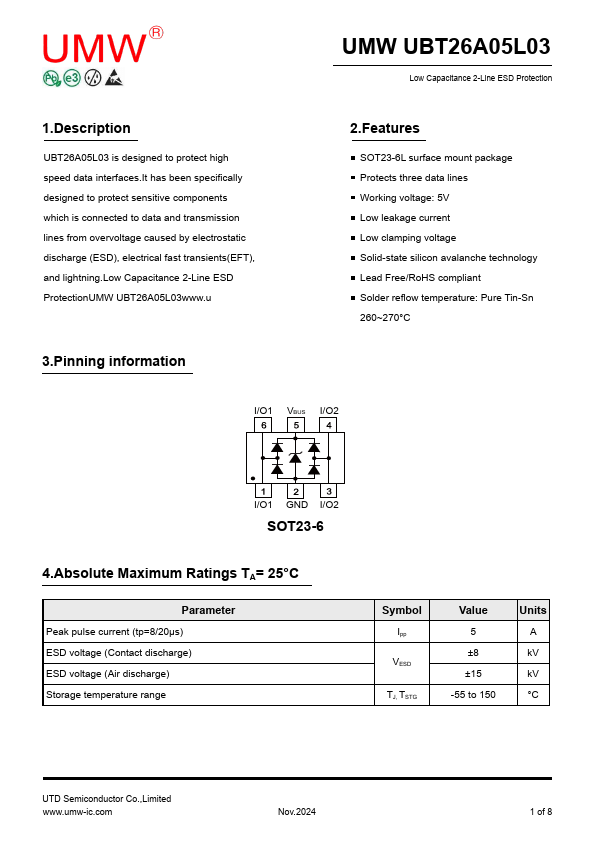

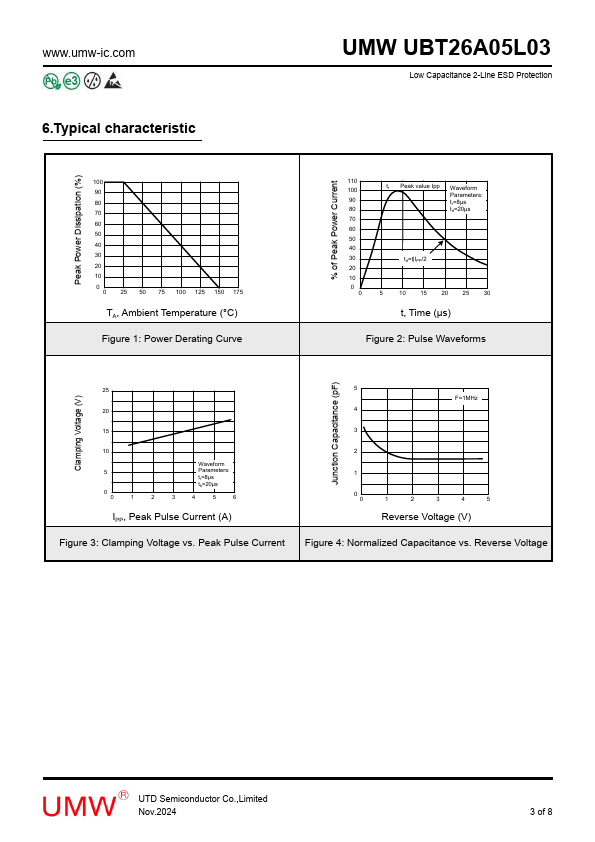

UBT26A05L03 Datasheet Preview — Preview of UBT26A05L03 PDF

Datasheet Specifications

Part number: UBT26A05L03
Manufacturer: UMW
File Size: 190.88 KB
Datasheet: UBT26A05L03-UMW.pdf
Description: Low Capacitance 2-Line ESD Protection

Features

* SOT23-6L surface mount package Protects three data lines Working voltage: 5V Low leakage current Low clamping voltage Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn 260~270°C I/O1 VBUS I/O2 I/O1 GND I/O2 SOT23-6 4.Absolute Maximum Ratings T

Applications

* Information USB 2.0 port application diagram Device upstream transceiver VBUS RX LS/FS + RX HS + TX HS + RX LS/FS RX HS TX HS - GND TX LS/FS + TX LS/FS - +3.3V RPU SW2 SW1 RS RS UBT26A05L03 USB connector VBUS D+ DGND +5V Protection Bus Switch HUB downstream transceiver UBT26A05L03 RPD RS
