57HSY4601-XX, 57HSY1601-XX Datasheet - UMot

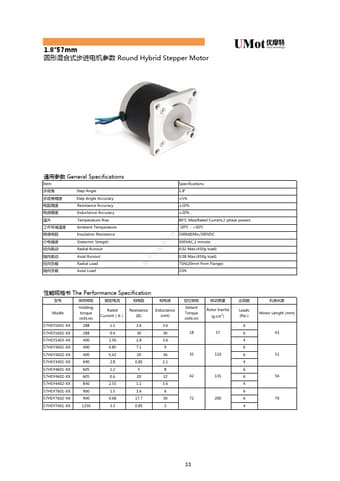

57HSY4601-XX Hybrid Stepper Motor

1.8°57mm Round Hybrid Stepper Motor General Specifications Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Stregth Radial Runout Axial Runout Radial Load Axial Load Specifications 1.8° ±5% ±10% ±20% 80℃ Max(Rated Current,2 phase power) -20℃ - +50℃ 100MΩMin,500VDC 500VAC,1 minute 0.02 Max.(450g load) 0.08 Max.(450g load) 75N(20mm from Flange) 15N The Per.

57HSY1601-XX-UMot.pdf

This datasheet PDF includes multiple part numbers: 57HSY4601-XX, 57HSY1601-XX. Please refer to the document for exact specifications by model.
57HSY4601-XX Datasheet Preview Page 2 57HSY4601-XX Datasheet Preview Page 3

Datasheet Details

Part number:

57HSY4601-XX, 57HSY1601-XX

Manufacturer:

UMot

File Size:

531.09 KB

Description:

Hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 57HSY4601-XX, 57HSY1601-XX.
Please refer to the document for exact specifications by model.
