Full PDF Text Transcription for HCM1012GH900A05P (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
HCM1012GH900A05P. For precise diagrams, and layout, please refer to the original PDF.

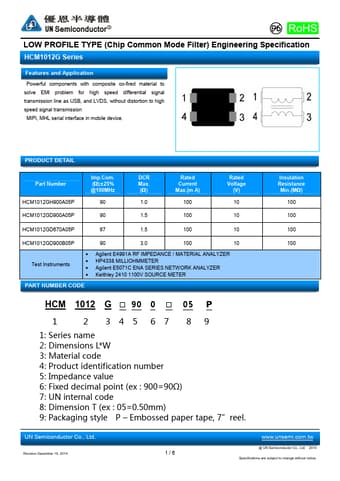

LOW PROFILE TYPE (Chip Common Mode Filter) Engineering Specification HCM1012G Series Features and Application Powerful components with composite co-fired material to solv...
View more extracted text
plication Powerful components with composite co-fired material to solve EMI problem for high speed differential signal transmission line as USB, and LVDS, without distortion to high speed signal transmission MIPI, MHL serial interface in mobile device. PRODUCT DETAIL Part Number HCM1012GH900A05P Imp.Com. (Ω)±25% @100MHz 90 DCR Max. (Ω) 1.0 Rated Current Max.(m A) 100 Rated Voltage (V) 10 HCM1012GD900A05P 90 1.5 100 10 HCM1012GD670A05P 67 1.5 100 10 HCM1012GD900B05P 90 3.
HCM1012GH900A05P Datasheet
