20KP172CA, 20KP20A - Axial Lead Transient Voltage Suppressors

The 20KP172CA by UN Semiconductor is a Axial Lead Transient Voltage Suppressors. Below is the official datasheet preview.

📥 Download Datasheet

20KP172CA Axial Lead Transient Voltage Suppressors by UN Semiconductor - Datasheet Preview — Official preview page of the **20KP172CA** Axial Lead Transient Voltage Suppressors datasheet (UN Semiconductor).

Datasheet Details

Part number	20KP172CA, 20KP20A
Manufacturer	UN Semiconductor
File Size	609.63 KB
Description	Axial Lead Transient Voltage Suppressors
Datasheet	20KP20A-UNSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP172CA, 20KP20A. Please refer to the document for exact specifications by model.

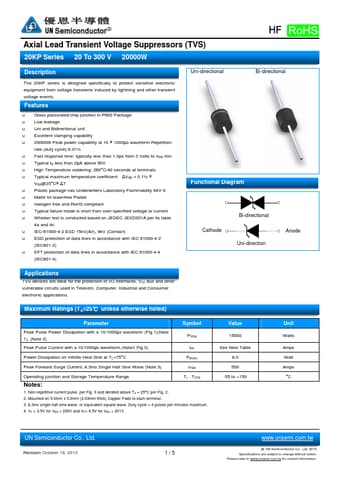

Additional preview pages of the 20KP172CA datasheet.

20KP172CA Product details

Description

The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

u Glass passivated chip junction in P600 Package u Low leakage u Uni and Bidirectional unit u Excellent clamping capability u 20000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Volts to VBR min u Typical IR less than 2μA above 50V. u High Temperature soldering: 260°C/40 seconds at terminals u Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT u Plastic package has Underwriters Laboratory F.
