20KP96A Features
* u Glass passivated chip junction in P600 Package u Low leakage u Uni and Bidirectional unit u Excellent clamping capability u 20000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Volts to VBR min u Typical IR l
Datasheet Details
20KP96A, 20KP20A
UN Semiconductor
609.63 KB

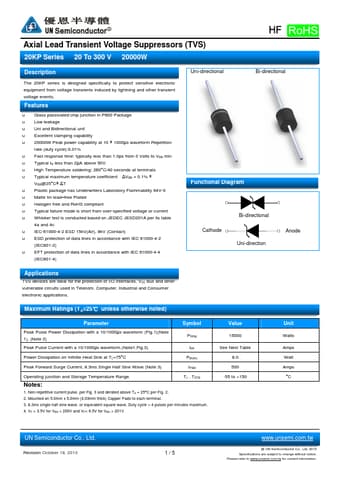

Axial lead transient voltage suppressors.
This datasheet PDF includes multiple part numbers: 20KP96A, 20KP20A.
Please refer to the document for exact specifications by model.
