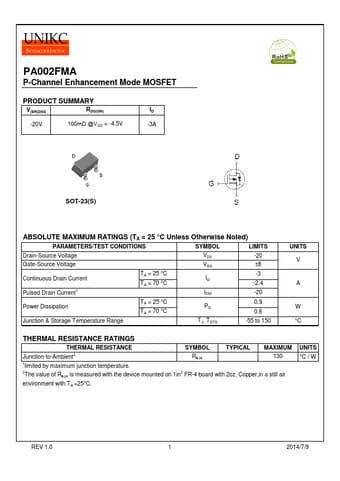

PA002FMA
P-Channel Enhancement Mode MOSFET
PRODUCT SUMMARY
V(BR)DSS
RDS(ON)
-20V
100mΩ @VGS = -4.5V
ID -3A
SOT-23(S)
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted)
PARAMETERS/TEST CONDITIONS
SYMBOL
LIMITS
Drain-Source Voltage
VDS -20
Gate-Source Voltage
VGS ±8
Continuous Drain Current Pulsed Drain Current1
TA = 25 °C TA = 70 °C
ID IDM
-3 -2.4 -20
Power Dissipation
TA = 25 °C TA = 70 °C
PD
0.9 0.6
Junction & Storage Temperature Range
TJ, TSTG
-55 to 150
UNITS V
A
W °C
THERMAL RESISTANCE RATINGS
THERMAL RESISTANCE
SYMBOL
TYPICAL MAXIMUM
Junction-to-Ambient2
RqJA
130
1limited by maximum junction temperature.
2The value of RqJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper,in a still air
environment with TA =25°C.
