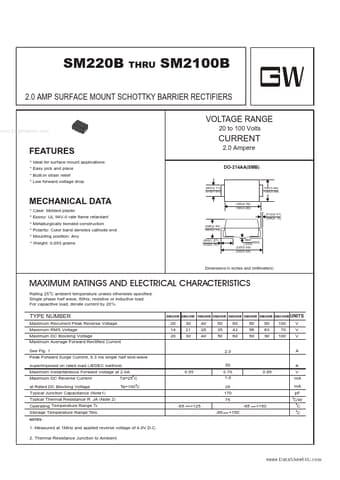

SM2100B
FEATURES
- Ideal for surface mount applications
- Easy pick and place
- Built-in strain relief
- Low forward voltage drop
.083(2.11) .075(1.91)
2.0 Ampere
DO-214AA(SMB)
.155(3.94) .130(3.30)
MECHANICAL DATA
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Metallurgically bonded construction
- Polarity: Color band denotes cathode end
- Mounting position: Any
- Weight: 0.093 grams
.096(2.44) .083(2.13) .050(1.27) .030(0.76)
.185(4.70) .160(4.06) .012(0.31) .006(0.15)
.008 MAX. (.203) .220(5.59) .200(5.08)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave...
