CSR604B POWER REGULATOR

X10229 RFI Filtering recommendations - addressing the EMC Directive X10213 ITA Interaction, uses for phase angle and for burst fire control. X10255 SRA Safety requirements - addressing the Low Voltage Directive (LVD) including :- Thermal data /cooling ; “Live” parts warning & Earthing requirements; .

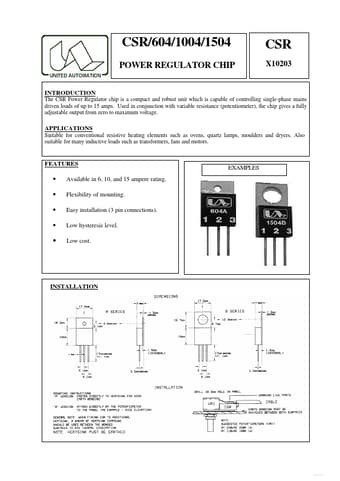

CSR/604/1004/1504 POWER REGULATOR CHIP INTRODUCTION CSR X10203 The CSR Power Regulator chip is a compact and robust unit which is capable of controlling single-phase mains driven loads of up to 15 amps. Used in conjunction with variable resistance (potentiometer), the chip gives a fully adjustable output from zero to maximum voltage. APPLICATIONS Suitable for conventional resistive heating elements such as ovens, quartz lamps, moulders and dryers. Also suitable for many inductive loads such a.

CSR604B Features

* Available in 6, 10, and 15 ampere rating. Flexibility of mounting. Easy installation (3 pin connections). Low hysteresis level. Low cost. EXAMPLES

* INSTALLATION F r e e D a t a s h e e t h tp : / / w w w . d a t a s h e e t 4 u . c o m / INSTALLA

CSR604B Datasheet (128.91 KB)

CSR604B Datasheet Preview — Preview of CSR604B PDF

Datasheet Details

Part number:

CSR604B

Manufacturer:

UNITED AUTOMATION

File Size:

128.91 KB

Description:

Power regulator.
