RS5AB Surface Mount Fast Recovery Rectifiers

📥 Download Datasheet Datasheet Preview Page 1

Description

RS5AB~RS5MB Surface Mount Fast Recovery Rectifiers ROHS .

📥 Download Datasheet

Preview of RS5AB PDF

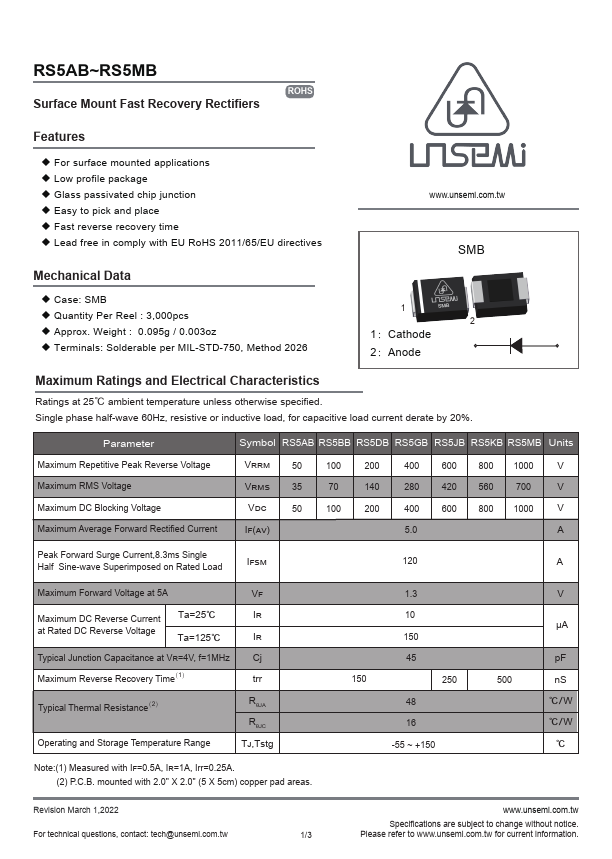

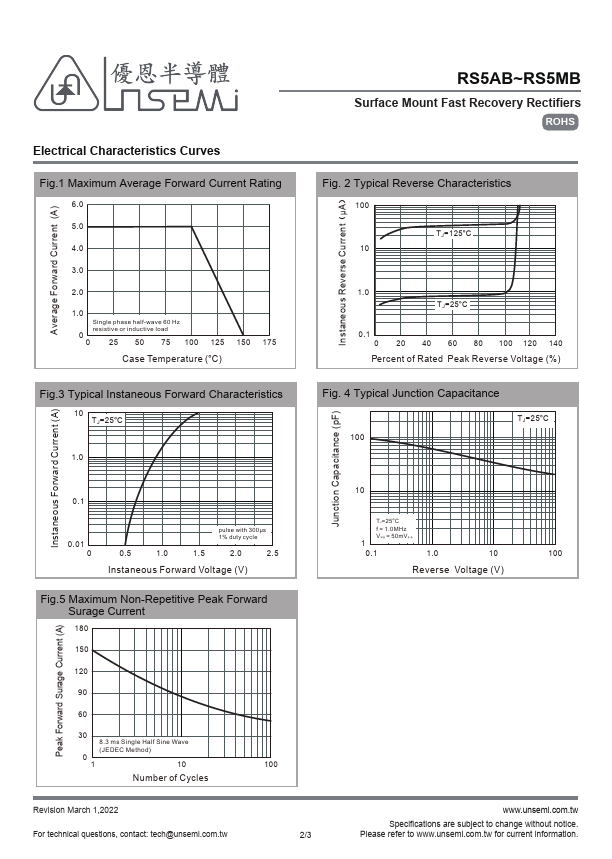

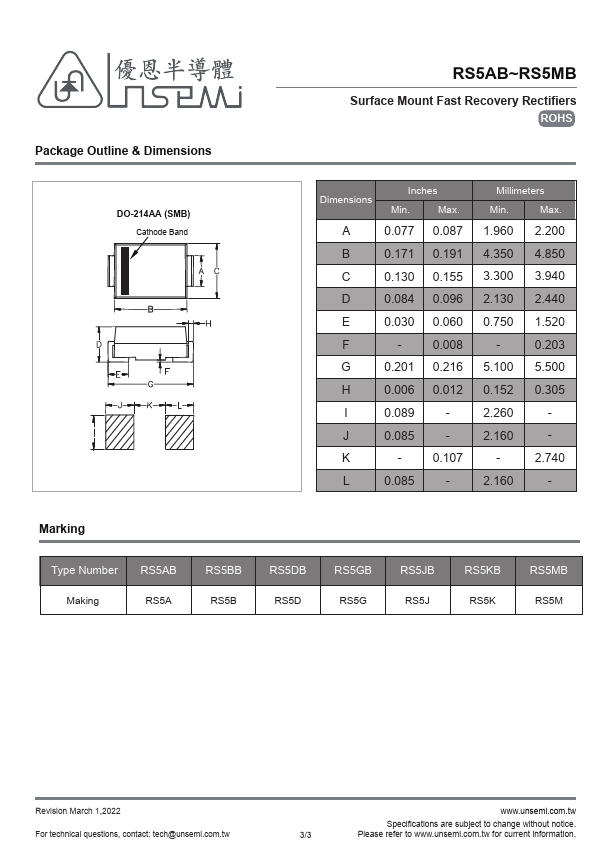

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS5AB
Manufacturer
UNSEMI
File Size
2.06 MB
Datasheet
RS5AB-UNSEMI.pdf
Description
Surface Mount Fast Recovery Rectifiers

Applications

* Low profile package
* Glass passivated chip junction
* Easy to pick and place
* Fast reverse recovery time
* Lead free in comply with EU RoHS 2011/65/EU directives Mechanical Data
* Case: SMB
* Quantity Per Reel : 3,000pcs
* Approx. Weight : 0.095g / 0.003oz
* T
