BAS40SW, BAS40W, SURFACE MOUNT SCHOTTKY DIODES

.004(.10)MIN..087(2.2) .078(2.0) UPM BAS40W/AW/CW/SW SURFACE MOUNT SCHOTTKY DIODES Voltage Range 40 Volts Current 0.2 Ampers .

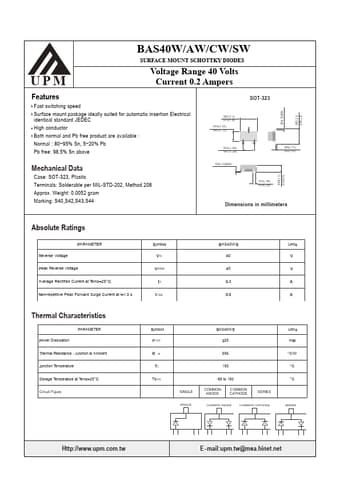

datasheet Preview Page 1 from Datasheet4u.com

BAS40W-UPM.pdf

BAS40SW Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS40SW, BAS40W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAS40SW, BAS40W

Manufacturer:

UPM

File Size:

510.36 KB

Description:

SURFACE MOUNT SCHOTTKY DIODES

Note:

This datasheet PDF includes multiple part numbers: BAS40SW, BAS40W.
Please refer to the document for exact specifications by model.

Features

* Fast switching speed
* Surface mount package ideally suited for automatic insertion Electrical identical standard JEDEC
* High conductor
* Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above SOT-323 .087(2.2) .070(1.8) .054(1.35) .
