DL4728A - SURFACE MOUNT ZENER DIODES

UPM

📥 Download Datasheet

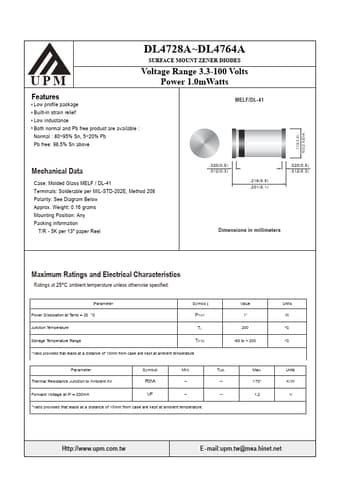

DL4728A Datasheet Preview — Preview of DL4728A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DL4728A
Manufacturer	UPM
File Size	506.55 KB
Description	SURFACE MOUNT ZENER DIODES
Datasheet	DL4728A-UPM.pdf

DL4728A Product details

Features

Low profile package.
Built-in strain relief.
Low inductance.
Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above MELF/DL-41 .110(2.8) .102(2.6)DIA. Mechanical Data Case: Molded Glass MELF / DL-41 Terminals: Solderable per MIL-STD-202E, Method 208 Polarity: See Diagram Below Approx. Weight: 0.16 grams Mounting Position: Any Packing information T/R - 5K per 13" paper Reel .020(0.5) .012(0.3) .216(5.5) .201(5.1) .020(0.5).
