SB8100D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the SB8100D, a member of the SB820D SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss, high efficiency.
  • Low forwrd voltge, high current capability.
  • High surge capacity.
  • For use in low voltage,high frequency inverters free wheeling , and polarlity protection.

📥 Download Datasheet

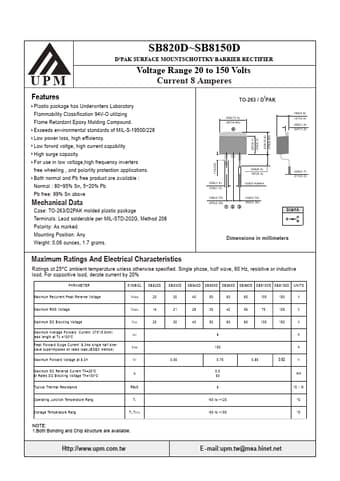

Datasheet preview – SB8100D

Datasheet Details

Part number SB8100D
Manufacturer UPM
File Size 1.94 MB
Description SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SB8100D Datasheet
Additional preview pages of the SB8100D datasheet.

📁 Similar Datasheet

  • SB8100D - 8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB8100D - 8.0A Surface Mount Dual Schottky Barrier Rectifier (MAYLOON)
  • SB8100DC - 8.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB8100DC - 8.0A Surface Mount Dual Schottky Barrier Rectifier (SINLOON)
  • SB8100DC - D2PAK SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER (Pan Jit International Inc.)
  • SB8100 - SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB8100 - 8.0A SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB8100 - SCHOTTKY BARRIER RECTIFIER (KD)
  • SB8100 - Schottky Barrier Rectifiers (LRC)
  • SB8100 - SCHOTTKY BARRIER RECTIFIER (PACELEADER)
Other Datasheets by UPM
  • SB8150D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB820D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB830D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB840D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB850D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB860D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • SB880D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
UPM SB820D~SB8150D D2PAK SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER Voltage Range 20 to 150 Volts Current 8 Amperes Features * Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. * Exceeds environmental standards of MIL-S-19500/228 * Low power loss, high efficiency. * Low forwrd voltge, high current capability * High surge capacity. * For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. * Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 99% Sn above Mechanical Data Case: TO-263/D2PAK molded plastic package Terminals: Lead solderable per MIL-STD-202G, Method 208 Polarity: As marked. Mounting Position: Any Weight: 0.06 ounces, 1.
