SM350A, SM320A Datasheet - UPM

SM350A Schottky Barrier Rectifiers

SM320A thru SM3200A Schottky Barrier Rectifiers .065 (1.65) .049 (1.25) .110 (2.79) .100 (2.54) 0.177 (4.50) 0.157 (3.99) .090 (2.29) .078 (1.98) .012 (0.305) .006 (0.152) .060 (1.52) .030 (0.76) .008 (0.20) .004 (0.10) .208 (5.28) .194 (4.91) DO-214AC(SMA) Dimensions in inches and (millimeters) Ordering Information Part Number SM3xxA SM3xxA-H Remark General Halogen Free SM3xxA-Q Automotive PRIMARY CHARACTERISTICS IF 3A VRRM 20~200V IFSM 80A VF 0.50V, 0.70V, 0.85V, 0.87V, 0.

SM350A Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AC (SMA) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Te

SM320A-UPM.pdf

This datasheet PDF includes multiple part numbers: SM350A, SM320A. Please refer to the document for exact specifications by model.

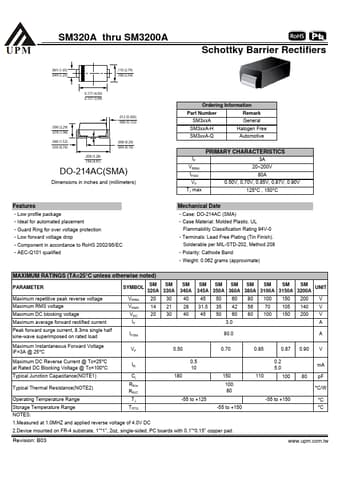

SM350A Datasheet Preview Page 2

Datasheet Details

Part number:

SM350A, SM320A

Manufacturer:

UPM

File Size:

225.58 KB

Description:

Schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SM350A, SM320A.
Please refer to the document for exact specifications by model.
