| Part number | 2N5089, 2N5088 |
|---|---|
| Manufacturer | UTC |
| File Size | 297.37 KB |
| Description | NPN EPITAXIAL SILICON TRANSISTOR |
| Datasheet |
 2N5088_UTC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2N5089, 2N5088. Please refer to the document for exact specifications by model. |

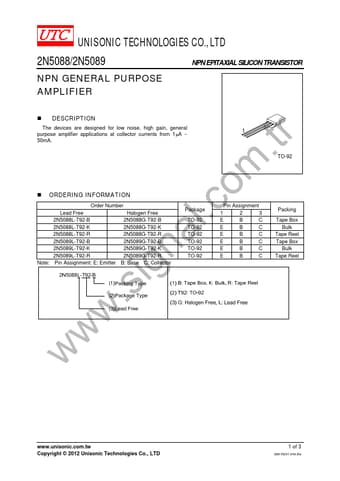

The devices are designed for low noise, high gain, general purpose amplifier applications at collector currents from 1μA ~ 50mA. ORDERING INFORMATION Order Number Lead Free Halogen Free 2N5088L-T92-B 2N5088G-T92-B 2N5088L-T92-K 2N5088G-T92-K 2N5088L-T92-R 2N5088G-T92-R 2N5089L-T92-B 2N5089G-T92-B 2N5089L-T92-K 2N5089G-T92-K 2N5089L-T92-R 2N5089G-T92-R Note: Pin Assignment: E: Emitter B: Base C: Collector Package TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 Pin Assign
