2SC945 NPN Transistor

2SC945 Description

UNISONIC TECHNOLOGIES CO., LTD 2SC945 NPN SILICON TRANSISTOR AUDIO FREQUENCY AMPLIFIER HIGH FREQUENCY OSC NPN TRANSISTOR * .
The UTC 2SC945 is an audio frequency amplifier high frequency OSC NPN transistor. FEATURES. Collector-Emitter voltage: BVCBO=50V. Coll.

2SC945 Features

* Collector-Emitter voltage: BVCBO=50V
* Collector current up to 150mA
* High hFE linearity
* Complimentary to UTC 2SA733
* ORDERING INFORMATION Order Number Lead Free Plating Halogen Free 2SC945L-x-T92-B 2SC945G-x-T92-B 2SC945L-x-T92-K 2SC945G-x-T92-K Note: Pin Assignme

📥 Download Datasheet

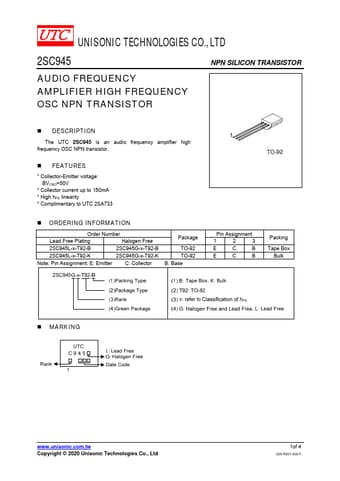

Preview of 2SC945 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC945
Manufacturer
UTC
File Size
212.50 KB
Datasheet
2SC945_UTC.pdf
Description
NPN Transistor
