7N65A

N-CHANNEL MOSFET

7N65A Features

* RDS(ON) ≤ 1.4Ω @ VGS=10V, ID=3.5A

* Fast switching capability

* Avalanche energy tested

* Improved dv/dt capability, high ruggedness 1 TO-220 1 TO-220F 1 TO-220F1 1 TO-220F2 1 TO-220F3 1 TO-262 1 TO-263

* SYMBOL 2.Drain 1.Gate 3.Source www.unisonic.com.tw Copyright

7N65A General Description

The UTC 7N65A is a high voltage N-Channel enhancement mode power field effect transistors designed to have minimize on-state resistance, superior switching performance and withstand high energy pulse in the avalanche and commutation mode. This power MOSFET is well suited for high efficiency switch m.

7N65A Datasheet (449.43 KB)

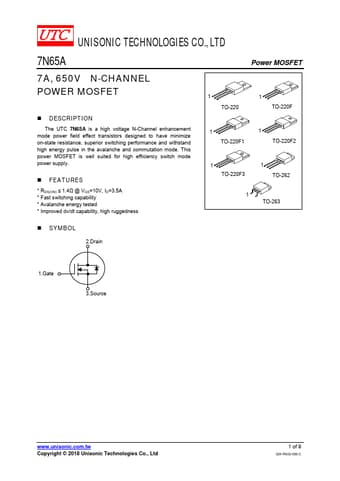

Preview of 7N65A PDF

Datasheet Details

Part number:

7N65A

Manufacturer:

UTC

File Size:

449.43 KB

Description:

N-channel mosfet.
