82N29

The 82N29 is VOLTAGE DETECTORS designed by UTC.

Product Overview

UTC

📥 Download Datasheet

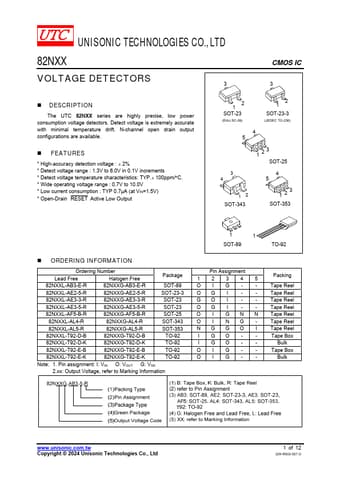

82N29 VOLTAGE DETECTORS by UTC - Datasheet Preview — Datasheet preview – 82N29

Datasheet Details

Part number	82N29, 82NXX
Manufacturer	UTC
File Size	321.04 KB
Description	VOLTAGE DETECTORS
Datasheet	82NXX_UTC.pdf
Note	This datasheet PDF includes multiple part numbers: 82N29, 82NXX. Please refer to the document for exact specifications by model.
Additional preview pages of the 82N29 datasheet.

Product details

Description

The UTC 82NXX series are highly precise, low power consumption voltage detectors.

Features

S.
High-accuracy detection voltage : ±2%.
Detect voltage range : 1.3V to 6.0V in 0.1V increments.
Detect voltage temperature characteristics: TYP. ±100ppm/C.
Wide operating voltage range : 0.7V to 10.0V.
Low current consumption : TYP 0.7μA (at VIN=1.5V).
Open-Drain RESET Active Low Output 2 1 SOT-23 (EIAJ SC-59) 12 SOT-23-3 (JEDEC TO-236) 4 5 1 23 SOT-25 3 4 4 5 12 SOT-343 123 SOT-353.
