L2572

WIDEBAND PLL FM DEMODULATOR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor ams OSRAM Group TSL25722-EVM-REV.-2.0 TSL25722 EVM REV. 2.0 DigiKey 4 1 units
$273.61

L2572 Datasheet (250.65 KB)

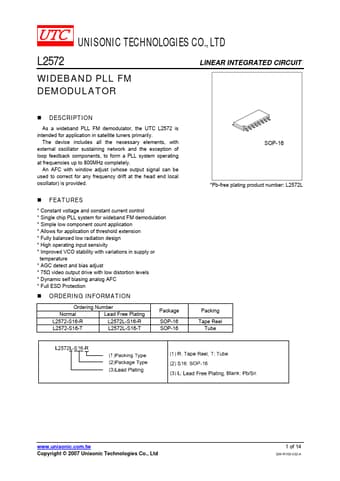

Preview of L2572 PDF

Datasheet Details

Part number:

L2572

Manufacturer:

UTC

File Size:

250.65 KB

Description:

Wideband pll fm demodulator.

L2572 Features

* Constant voltage and constant current control

* Single chip PLL system for wideband FM demodulation

* Simple low component count application

* Allows for application of threshold extension

* Fully balanced low radiation design

* High operating input sensivity

* Improve

L2572 General Description

As a wideband PLL FM demodulator, the UTC L2572 is intended for application in satellite tuners primarily. The device includes all the necessary elements, with external oscillator sustaining network and the exception of loop feedback components, to form a PLL system operating at frequencies up to 80.
