LR9107 Datasheet - UTC

LR9107 - OUTPUT CAPACITOR-LESS LOW VOLTAGE 200mA LDO REGULATOR

The UTC LR9107 is a CMOS-based low dropout regulator with high output voltage accuracy, low dropout, high PSRR and low quiescent current.

The UTC LR9107 includes a voltage reference unit, an error amplifier, current limit circuit, resistors for setting output voltage, and a chip enable circuit.

With

LR9107 Features

* Quiescent current: Typ. 9.5µA

* Low VIN and wide VIN range: 1.4V~5.25V

* Guarantee output current: 200mA

* VOUT accuracy: ±1%

* Ripple Rejection: Typ. 70dB (f=1kHz,VOUT≤1.2V) Typ. 65dB (f=1kHz, 1.2V

LR9107-UTC.pdf

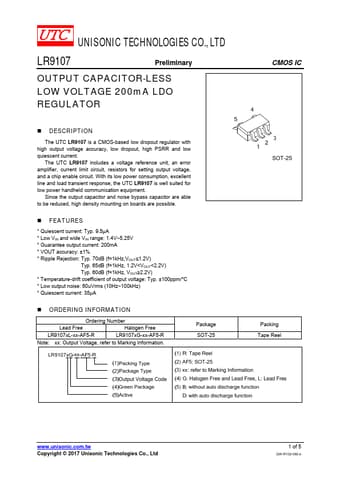

Preview of LR9107 PDF
