M7206 3 1/2 LCD DISPLAY DRIVER / A/D CONVERTERS

CMOS IC The UTC M7206 is a 3 1/2 A/D converter IC with low power supply and excellent performance, which also can greatly refrain form interfering. The M7206 combines seven -phase decoder, display driver, reference source, clock system and back light polarity driver, so it can directly drive LCD. .

M7206 Features

* On-off state detecting and alarming

* Zero auto-adjustment, guaranteed zero reading with zero input.

* True polarity indication for precision null detection.

* Differential inputs and differential reference.

* Triplex LCD display.

* Convenient 9V battery operation

* CM

M7206-UTC.pdf

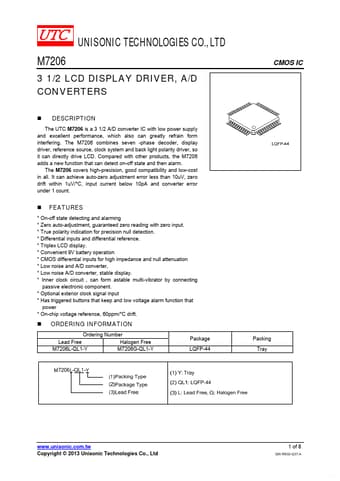

M7206 Datasheet Preview — Preview of M7206 PDF

Datasheet Details

Part number:

M7206

Manufacturer:

UTC

File Size:

322.35 KB

Description:

3 1/2 lcd display driver / a/d converters.
