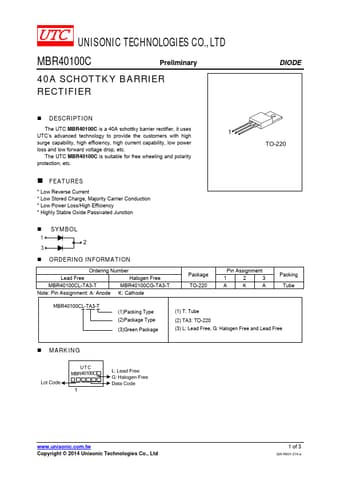

MBR40100C 40A SCHOTTKY BARRIER RECTIFIER

The UTC MBR40100C is a 40A schottky barrier rectifier, it uses UTC’s advanced technology to provide the customers with high surge capability, high efficiency, high current capability, low power loss and low forward voltage drop, etc. The UTC MBR40100C is suitable for free wheeling and polarity prote.

MBR40100C Features

* Low Reverse Current

* Low Stored Charge, Majority Carrier Conduction

* Low Power Loss/High Efficiency

* Highly Stable Oxide Passivated Junction

* SYMBOL DIODE

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR40100CL-TA3-T MBR40100CG-TA3-T Note: Pin A
