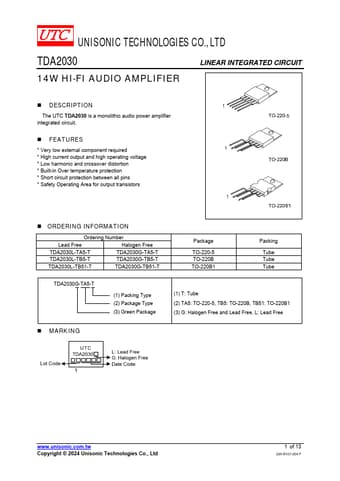

DESCRIPTION The UTC TDA2030 is a monolithic audio power amplifier integrated circuit. - FEATURES - Very low external ponent required - High current output and high operating voltage - Low harmonic and crossover distortion - Built-in Over temperature protection - Short circuit protection between all pins - Safety Operating Area for output transistors - ORDERING INFORMATION Ordering Number Lead Free Halogen Free TDA2030L-TA5-T TDA2030G-TA5-T TDA2030L-TB5-T TDA2030G-TB5-T TDA2030L-TB51-T TDA2030G-TB51-T TDA2030G-TA5-T (1) Packing Type (2) Package Type (3) Green Package - MARKING Package TO-220-5 TO-220B TO-220B1 Packing Tube Tube Tube (1) T: Tube (2) TA5: TO-220-5, TB5: TO-220B, TB51: TO-220B1 (3) G: Halogen Free and Lead Free, L: Lead Free .unisonic..tw Copyright © 2024 Unisonic Technologies Co., Ltd 1 of 13 QW-R107-004.F - PIN CONFIGURATION LINEAR INTEGRATED CIRCUIT - PIN DESCRIPTION PIN NO. 1 2 3 4 5 PIN NAME IN+ IN-VS OUT +VS Non inverting input Inverting input -VS Output +VS FUNCTION UNISONIC TECHNOLOGIES CO., LTD .unisonic..tw 2 of...
