TDA7053A

STEREO BTL AUDIO OUTPUT AMPLIFIER

UTC

TDA7053A Features

* DC volume control

* Few external components

* Mute mode

* Thermal protection

* Short-circuit proof

* No switch-on and switch-off clicks

* Good overall stability

* Low power consumption

* Low HF radiation

* ESD protected on all pins.

* ORDERING INFORMATI

TDA7053A General Description

The UTC TDA7053A is stereo BTL output amplifiers with DC volume control and specially is designed for use in TV and monitors, but are also suitable for battery-fed portable recorders and radios. Different packages are supplied for different output power, DIP-16 for 2×1W and SOP-16 for 2×0.5W.
*.

TDA7053A Datasheet (339.52 KB)

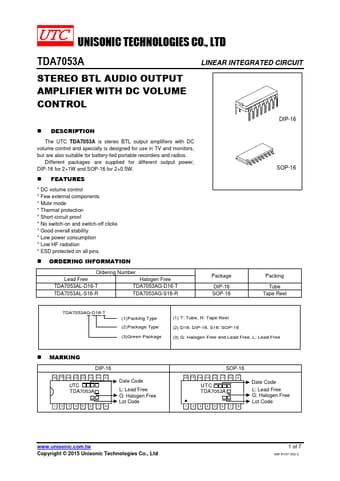

TDA7053A Datasheet Preview — Preview of TDA7053A PDF

Datasheet Details

Part number:

TDA7053A

Manufacturer:

UTC

File Size:

339.52 KB

Description:

Stereo btl audio output amplifier.
