TEA2025D STEREO AUDIO AMPLIFIER

TEA2025D Description

UNISONIC TECHNOLOGIES CO., LTD TEA2025D LINEAR INTEGRATED CIRCUIT STEREO AUDIO AMPLIFIER * .
The UTC TEA2025D is a monolithic integrated circuit that intended for use as dual or bridge power audio amplifier portable radio cassette players.

TEA2025D Features

* Dual or bridge connection modes.
* Few external components.
* Supply voltage down to 3V.
* High channel separation.
* Very low switch onoff noise.
* Max gain of 45dB with adjust external resistor.
* Soft clipping.
* Thermal protection.
* 3V

📥 Download Datasheet

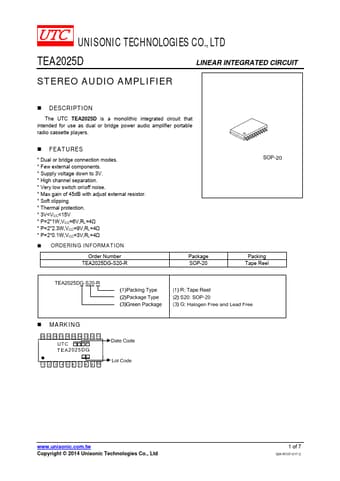

Preview of TEA2025D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TEA2025D
Manufacturer
UTC
File Size
257.38 KB
Datasheet
TEA2025D_UTC.pdf
Description
STEREO AUDIO AMPLIFIER
