UC3843A-Q - PWM CONTROLLER

Description

The UTC UC3843A-Q provide the necessary functions to implement off-line or DC to DC fixed frequency current mode, controlled switching circuits with minimal external components.

Features

  • S.
  • Low Start Up Current ( Typical 0.12mA ).
  • Automatic Feed Forward Compensation.
  • Pulse-by-Pulse Current Limiting.
  • Under-voltage Lockout with Hysteresis.
  • Double Pulse Suppression.
  • High Current Totem Pole Output to Drive MOSFET Directly.
  • Internally Trimmed Band Gap Reference.
  • 500kHz Operation.

📥 Download Datasheet

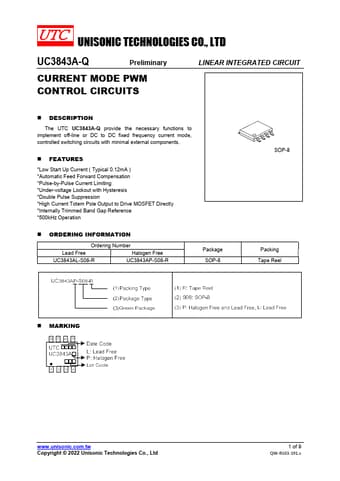

Datasheet preview – UC3843A-Q
