UM66T19L

Melody Integrated Circuit

UM66T19L Features

* 64-Note Rom memory

* 1.5V ~ 4.5V power supply and low power consumption

* Dynamic speaker can be driven with external NPN transistor

* OSC resistor hold mode

* Power on reset: melody begins from the first note

* Built in level hold mode CMOS IC 1 TO-92 1: VSS 2: VDD 3: O/P(Melod

UM66T19L General Description

The UTC UM66TXXL series are CMOS LSI designed for using in door bell, telephone and toy application. It is an on-chip ROM programmed for musical performance. Produced by CMOS technology, the device results in very low power consumption. Since the UTC UM66TXXL series include oscillation circuits a co.

UM66T19L Datasheet (184.14 KB)

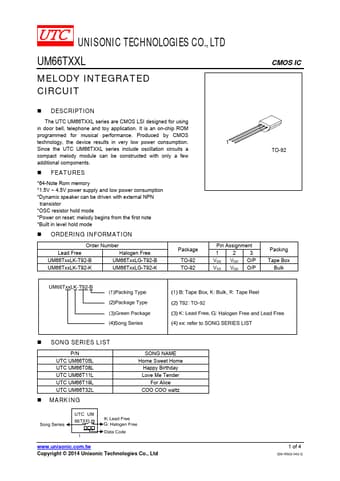

Preview of UM66T19L PDF

Datasheet Details

Part number:

UM66T19L

Manufacturer:

UTC

File Size:

184.14 KB

Description:

Melody integrated circuit.
