UR7215 Datasheet - UTC

UR7215 - ULTRA LOW IQ VOLTAGE REGULATOR

The UTC UR72XX Series are a low dropout regulator with wide input voltage range, high output voltage accuracy, ultra low quiescent current and low dropout.

This regulator is based on a CMOS process, and it’s input voltage could high enough more than 36V, thus they are very suitable for high voltage

UR7215 Features

* High output voltage accuracy: ± 2%

* Ultra low quiescent current: 1.2uA (Typ.)

* Low temperature-drift coefficient of VOUT: ±50 ppm/°C (Typ.)

* Wide Input voltage range: 0 ~ 36V 2 1 SOT-23 (EIAJ SC-59) 1 1 SOT-89 CMOS IC 4 5 1 23 SOT-25 TO-92

* ORDERING INFORMATION Order

UR7215-UTC.pdf

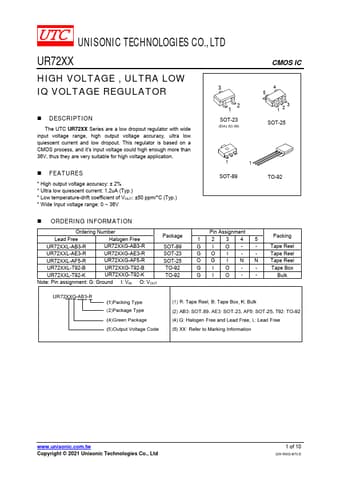

Preview of UR7215 PDF
UR7215 Datasheet Preview Page 2 UR7215 Datasheet Preview Page 3

Datasheet Details

Part number:

UR7215

Manufacturer:

UTC

File Size:

224.48 KB

Description:

Ultra low iq voltage regulator.
