UT12P10 Datasheet - UTC

UT12P10 - P-CHANNEL POWER MOSFET

UT12P10 Features

* RDS(ON) ≤ 0.2 Ω @ VGS=-10V, ID=-12A

* High Switching Speed

* SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UT12P10L-TM3-T UT12P10G-TM3-T UT12P10L-TN3-R UT12P10G-TN3-R Note: Pin Assignment: G: Gate D: Drain S: S

UT12P10-UTC.pdf

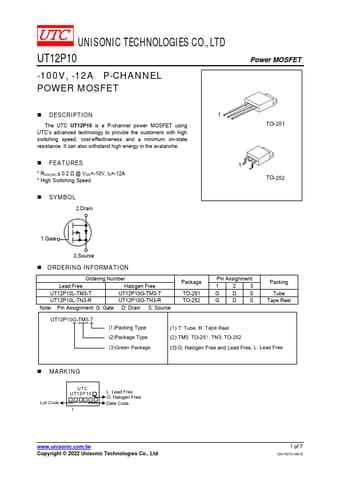

Preview of UT12P10 PDF
UT12P10 Datasheet Preview Page 2 UT12P10 Datasheet Preview Page 3

Datasheet Details

Part number:

UT12P10

Manufacturer:

UTC

File Size:

628.33 KB

Description:

P-channel power mosfet.
