UZ0107 LOGIC LEVEL FOUR-QUADRANT TRIAC

The UTC UZ0107 is a logic level four-quadrant triac, it uses UTC’s advanced technology to provide customers with enhanced current surge capability and high blocking voltage, etc. The UTC UZ0107 is suitable for low power AC Fan controllers, industrial process control and general purpose low power mot.

UZ0107 Features

* IGT≤5mA, IGT≤10mA (T2- G+), ITSM≤12.5A (tp=20ms) ITSM≤13.8A (tp=16.7ms), IT(RMS)≤1A

* Enhanced current surge capability

* Direct interfacing to logic level ICs

* High blocking voltage of 800V

* Enhanced noise immunity

* Sensitive gate in four quadrants

* SYMBOL TRIAC

UZ0107 Datasheet (303.87 KB)

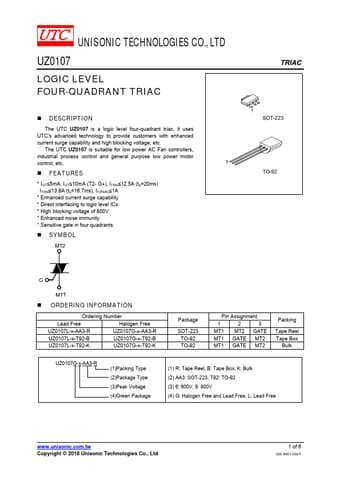

UZ0107 Datasheet Preview — Preview of UZ0107 PDF

Datasheet Details

Part number:

UZ0107

Manufacturer:

UTC

File Size:

303.87 KB

Description:

Logic level four-quadrant triac.
