UTC-3216-421N - Gas Discharge Tube

Unictron

Datasheet Details

Part number	UTC-3216-421N
Manufacturer	Unictron
File Size	292.00 KB
Description	Gas Discharge Tube
Datasheet	UTC-3216-421N Datasheet
Additional preview pages of the UTC-3216-421N datasheet.

📁 Similar Datasheet

UTC-1005 - Thin Film Cascadable Amplifier (Teledyne)
UTC-1044 - Thin Film Cascadable AMplifier (Agilent Technologies)
UTC-111 - Thin-Film Cascadable Amplifier (Teledyne)
UTC-2012 - Thin-Film Cascadable Amplifier (Teledyne Cougar)
UTC-2321 - Thin-Film Cascadable Amplifier (Teledyne)
UTC-546 - Thin-Film Cascadable Amplifier (teledyne cougar)
UTC1005 - Thin Film Cascadable Amplifier (Teledyne)
UTC1018 - FM IF SYSTEM (YOUWANG)
UTC1031 - TV Vertical Deflection System (Hangzhou Silan Microelectronics)
UTC1044 - Thin Film Cascadable AMplifier (Agilent Technologies)

Other Datasheets by Unictron

Full PDF Text Transcription

Click to expand full text

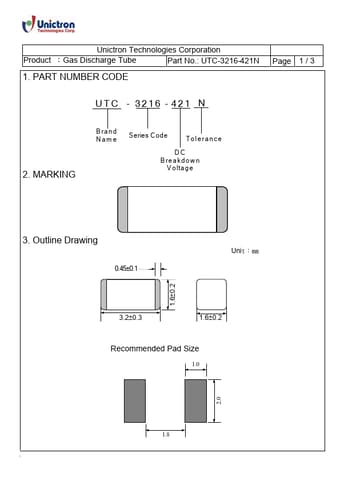

Unictron Technologies Corporation Product ：Gas Discharge Tube Part No.: UTC-3216-421N 1. PART NUMBER CODE Page 1 / 3 UTC - 3216 - 421 N 2. MARKING B ra n d Name Series C ode Tolerance DC Breakdow n V oltage 3. Outline Drawing 0.45±0.1 Unit：mm 1.60.2 3.20.3 1.60.2 Recommended Pad Size 1.0 2.0 1.8 Unictron Technologies Corporation Product ：Gas Discharge Tube Part No.: UTC-3216-421N Page 2 / 3 4. SPECIFICATION ELECTRICAL SPECIFICATION Model DC Breakdown Voltage Impulse Discharge Current Alternating Discharge Current Impulse Withstanding Voltage Capacity 10/700 us 4kV Impulse Life Test Insulation Capacitance Resistance (1MHz 1V) 421N 420V 294~546 8/20 us 500A 50HZ 1s 0.5A 10Times Positive/Negative 5 Times 8/20 us 100MΩ 50A Min 300Times (DC 100V) 0.

Published: Feb 3, 2017 |
