UG42S6442HSG - PC100 SDRAM Unbuffered SODIMM

Unigen

UG42S6442HSG Datasheet Preview — Preview of UG42S6442HSG PDF

Datasheet Details

Part number	UG42S6442HSG
Manufacturer	Unigen
File Size	211.57 KB
Description	PC100 SDRAM Unbuffered SODIMM
Datasheet	UG42S6442HSG_Unigen.pdf

UG42S6442HSG Product details

Description

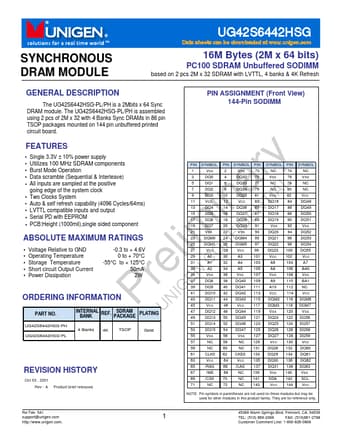

16M Bytes (2M x 64 bits) PC100 SDRAM Unbuffered SODIMM based on 2 pcs 2M x 32 SDRAM with LVTTL, 4 banks & 4K Refresh The UG42S6442HSG-PL/PH is a 2Mbits x 64 Sync DRAM module.The UG42S6442HSG-PL/PH is assembled using 2 pcs of 2M x 32 with 4 Banks Sync DRAMs in 86 pin TSOP packages mounted on 144 pin unbuffered printed circuit board.PIN ASSIGNMENT (Front View) 144-Pin SODIMM

Features

Single 3.3V ± 10% power supply Utilizes 100 MHz SDRAM components Burst Mode Operation Data scramble (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clock Two Clocks System Auto & self refresh capability (4096 Cycles/64ms) LVTTL compatible inputs and output Serial PD with EEPROM PCB:Height (1000mil),single sided component Pr el im in ar y PIN SYMBOL PIN SY.
