TPW100R500A

1000V Super-junction Power MOSFET

TPW100R500A Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Low Power Chargers and Adapters TO-220F TO-247 Device Marking and Package Information Devi

TPW100R500A General Description

1000V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs,designed according to the SJ principle. The deep trench SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make esp.

TPW100R500A Datasheet (576.94 KB)

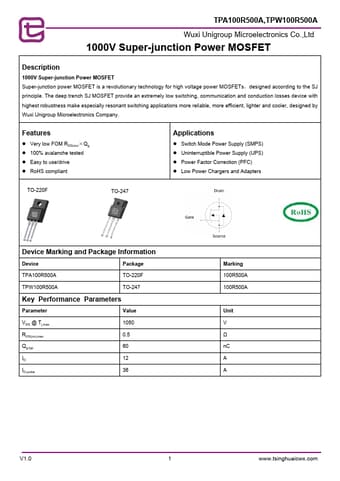

Preview of TPW100R500A PDF

Datasheet Details

Part number:

TPW100R500A

Manufacturer:

Unigroup

File Size:

576.94 KB

Description:

1000v super-junction power mosfet.
