TPY70R1K5MB

700V Super-Junction Power MOSFET

Unigroup

TPY70R1K5MB Features

* Very low FOM RDS(on)×Qg

* 100% avalanche tested

* RoHS compliant

* Integrated ESD protection diode APPLICATIONS

* Switch Mode Power Supply (SMPS)

* Uninterruptible Power Supply (UPS)

* Power Factor Correction (PFC) Device Marking and Package Information Device Packa

TPY70R1K5MB General Description

700V super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs， designed according to the SJ principle. The SJ MOSFET is a price-performance optimized product enabling to target cost sensitive applications in Consumer and Lighting markets ， .

TPY70R1K5MB Datasheet (273.33 KB)

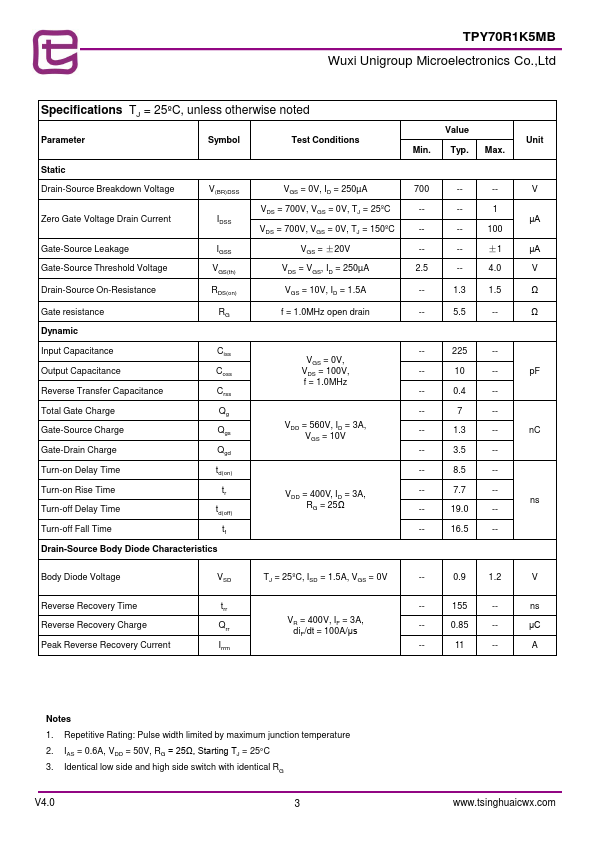

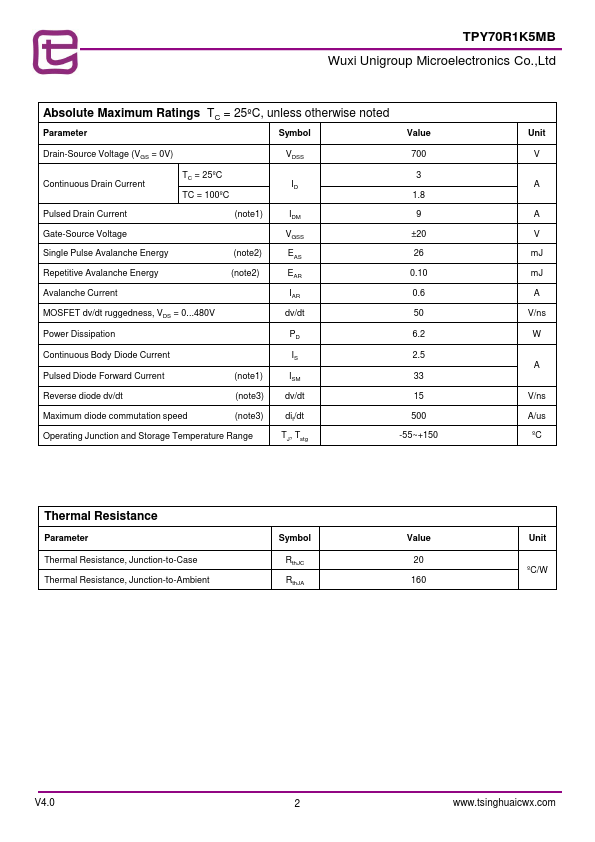

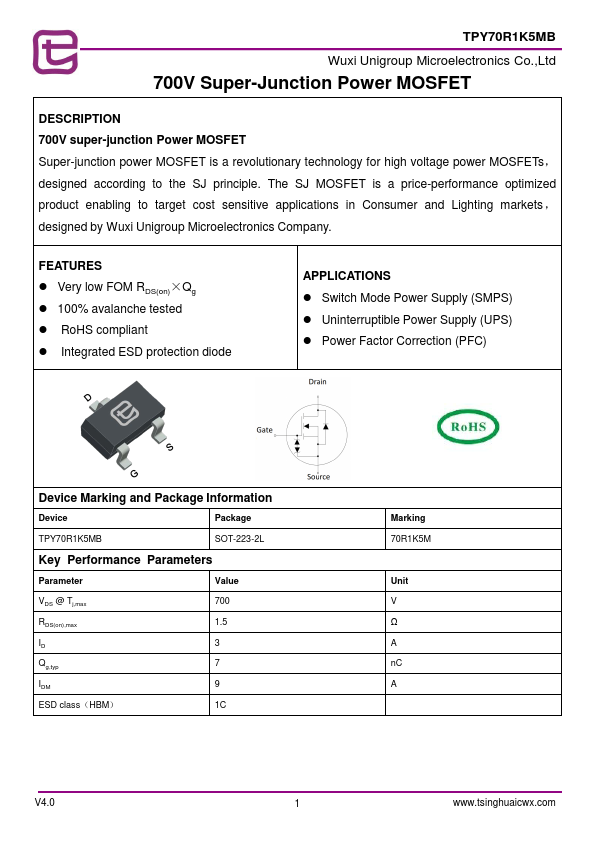

TPY70R1K5MB Datasheet Preview — Preview of TPY70R1K5MB PDF

Datasheet Details

Part number:

TPY70R1K5MB

Manufacturer:

Unigroup

File Size:

273.33 KB

Description:

700v super-junction power mosfet.
