25N20 N-CHANNEL POWER MOSFET

25N20 Description

UNISONIC TECHNOLOGIES CO., LTD 25N20 25A, 200V N-CHANNEL ENHANCEMENT MODE POWER MOSFET * .
The UTC 25N20 is an N-channel enhancement mode power MOSFET and it uses UTC’s perfect technology to provide designers with fast switching, ruggedized.

25N20 Features

* RDS(ON) < 160 mΩ @ VGS =10V, ID =16A
* Single Drive Requirement
* Low Gate Charge
* RoHS Compliant
* SYMBOL Power MOSFET
* ORDERING INFORMATION Note: Ordering Number Lead Free Halogen Free 25N20L-TF3-T 25N20G-TF3-T 25N20L-TF1-T 25N20G-TF1-T Pin Assignment: G: Gat

25N20 Applications

* and DC/DC converters requiring low voltage.

📥 Download Datasheet

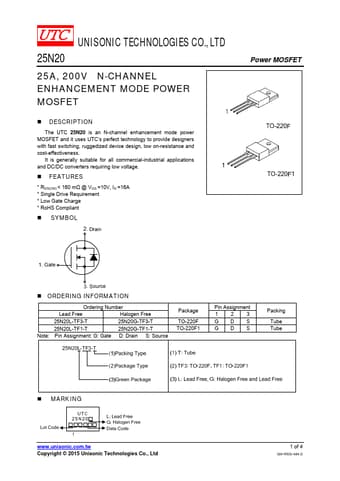

Preview of 25N20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
25N20
Manufacturer
Unisonic Technologies
File Size
221.55 KB
Datasheet
25N20-UnisonicTechnologies.pdf
Description
N-CHANNEL POWER MOSFET
