4N65-R - N-CHANNEL POWER MOSFET

4N65-R Description

UNISONIC TECHNOLOGIES CO., LTD 4N65-R Preliminary 4A, 650V N-CHANNEL POWER MOSFET * .
The UTC 4N65-R is a high voltage power MOSFET designed to have better characteristics, such as fast switching time, low gate charge, low on-state resi.

4N65-R Features

* RDS(ON) = 3.4Ω @VGS=10V, ID=2.2A
* Fast Switching Capability
* Avalanche Energy Specified
* Improved dv/dt Capability, High Ruggedness
* SYMBOL 1 Power MOSFET TO-220F1
* ORDERING INFORMATION Note: Ordering Number Lead Free Halogen Free 4N65L-TF1-T 4N65G-TF1-T Pin

4N65-R Applications

* including power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.

📥 Download Datasheet

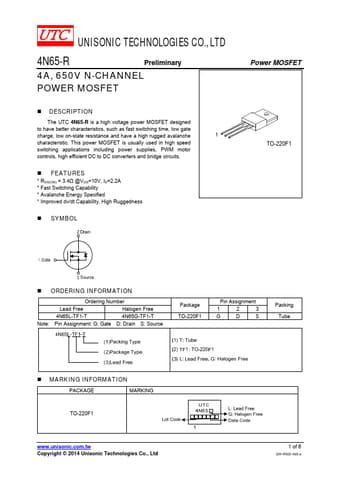

Preview of 4N65-R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N65-R
Manufacturer
Unisonic Technologies
File Size
217.76 KB
Datasheet
4N65-R-UnisonicTechnologies.pdf
Description
N-CHANNEL POWER MOSFET
