AN6651 Motor Speed Controller

AN6651 Description

UNISONIC TECHNOLOGIES CO., LTD AN6651 MOTOR SPEED CONTROL CIRCUIT * .
LINEAR INTEGRATED CIRCUIT The UTC AN6651 is a monolithic integrated circuit designed for the rotating control of a compact DC motor which is used fo.

AN6651 Features

* Wide operating supply voltage: VCC=3.5V ~ 14.4V
* Small four-lead plastic packer for compact motor.
* Few external components
* Stable low reference voltage (1.0V, typical)
* Wide motor speed setting
* Reverse voltage protection circuit built-in
* Pb-free plating product num

📥 Download Datasheet

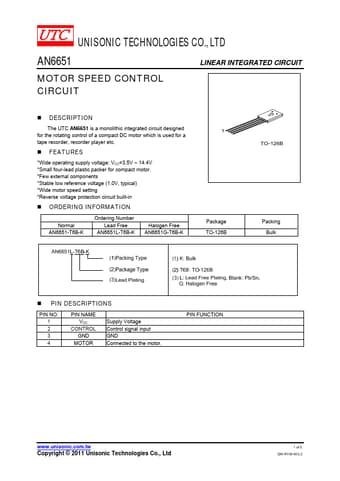

Preview of AN6651 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AN6651
Manufacturer
Unisonic Technologies
File Size
169.13 KB
Datasheet
AN6651_UnisonicTechnologies.pdf
Description
Motor Speed Controller
