GV4145A

LOW POWER GROUND FAULT INTERRUPTER

GV4145A Features

* No potentiomenter required

* Direct interface to SCR

* Supply voltage derived from AC line-26V shunt

* Adjustable sensitivity

* Grounded neutral fault detection

* 450μA quiescent current

* I deal for 120V or 220V systems

* ORDERING INFORMATION Ordering Number Lea

GV4145A General Description

The UTC GV4145A is a low power controller for AC outlet ground fault interrupters. These devices detect hazardous grounding conditions, such as equipment (connected to opposite phases of the AC line) in contact with a pool of water and open circuits the line before a harmful or lethal shock occurs..

GV4145A Datasheet (328.66 KB)

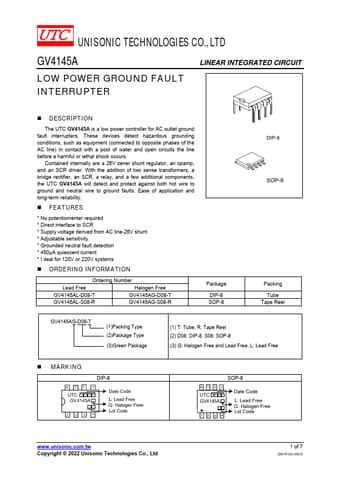

Preview of GV4145A PDF

Datasheet Details

Part number:

GV4145A

Manufacturer:

Unisonic Technologies

File Size:

328.66 KB

Description:

Low power ground fault interrupter.
